Trying egui: building a Cistercian Clock with Rust GUI ⌚️ # Trying egui: building a Cistercian Clock with Rust GUI ⌚️ #

🦀 Setting up your System for Rust #

Skip this if you already have Rust set up on your system.

1. Install rustup, the program for downloading and updating your local version of the Rust compiler and Rust tooling:


   curl --proto '=https' --tlsv1.2 https://sh.rustup.rs -sSf | sh



You will also need to install a C compiler (GCC, or Clang for example). On macOS, run xcode-select --install for a minimal version of Xcode, if you do not already have the full version set up. For full instructions, see the official Install Rust guide  .

2. Check you are up and running:


   rustc --version



At the time of writing, the current rustup version is 1.26 and you may have a newer version. This is different to the Rust version. We will see there is a file in the template which pins the Rust version for your egui project.

⚙️ Spinning up the egui Template #

To help you get going quickly, there is a starter template. If you have the GitHub CLI tool installed on your system  , the easiest way to use the template is to create a new repo from the Terminal:


gh repo create cistercian-clock \
  --template="emilk/eframe_template" --public
git clone \
  https://github.com/YOUR-GITHUB-PROFILE/cistercian-clock.git



Here, --public creates a public repo on your GitHub account (you can use --private, instead, if you prefer).

Alternatively, if you are not using gh, log into GitHub and then, open the egui template repo  . If you are logged in, you should see a Use this template button towards the top and right of the page. Click the button to create a new repo on your account, using the template, then from your machine, clone your new instance of the repo.

Spinning up the Template #

To run the code, jump into the new repo folder, in the Terminal, and use the command:


cargo run



This will be slower the first time, as cargo has to download packages, and then compile the code. Rust compiles incrementally, so later compilations will be quicker, only recompiling anything that has changed.

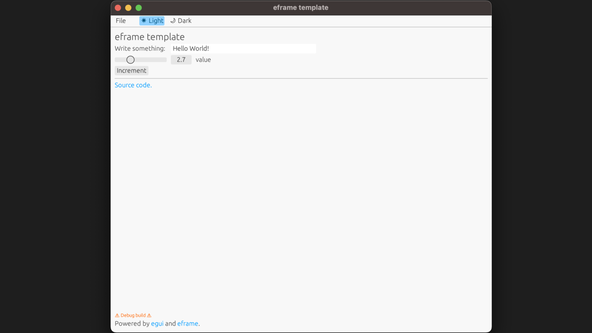

Once compilation is complete, the app should pop up, and look something like this:



⌚️ Customizing the Template #

Following the template instructions, we should update some fields in Cargo.toml and some source files.

Cargo.toml #

Cargo.toml manages dependency versions, workspaces, and package metadata in Rust projects. Update it with your own details:


1 [package]
2 name = "cistercian_clock"
3 version = "0.1.0"
4 authors = ["Your Name <you@example.com>"]
5 edition = "2021"
6 rust-version = "1.76"
7
8
9 [dependencies]
10 chrono = "0.4.38"
11 egui = "0.29"
12 eframe = { version = "0.29", default-features = false, features = [
13     "accesskit",     # Make egui comptaible with screen readers. NOTE: adds a lot of dependencies.
14     "default_fonts", # Embed the default egui fonts.
15     "glow",          # Use the glow rendering backend. Alternative: "wgpu".
16     "persistence",   # Enable restoring app state when restarting the app.
17 ] }
18 image = { version = "0.25.5", default-features = false, features = ["png"] }
19 log = "0.4"
20
21 # You only need serde if you want app persistence:
22 serde = { version = "1", features = ["derive"] }



I also added a couple of crates (Rust packages):

• chrono  — for time utility functions
• image  — to decode our custom app logo file

You might notice there are two styles used for adding dependencies. The more verbose one is helpful for managing output package size. As an optimization, some crates come with extra features, which are disabled by default. Others have features enabled by default, which you may not need in your current project. You have to check docs for the crates you use, to see what will work best for your current project. All Rust crates will have docs, and the relevant docs.rs pages are linked, just above, for chrono and image.

main.rs #

src/main.rs is the entry point for our app; the code the operating system will first run on executing it. We change TemplateApp to CistercianClockApp in lines 18 and 35:


1 #![warn(clippy::all, rust_2018_idioms)]
2 #![cfg_attr(not(debug_assertions), windows_subsystem = "windows")] // hide console window on Windows in release
3
4 // When compiling natively:
5 #[cfg(not(target_arch = "wasm32"))]
6 fn main() -> eframe::Result<()> {
7     env_logger::init(); // Log to stderr (if you run with `RUST_LOG=debug`).
8
9     let native_options = eframe::NativeOptions {
10         viewport: egui::ViewportBuilder::default()
11             .with_inner_size([400.0, 300.0])
12             .with_min_inner_size([300.0, 220.0]),
13         ..Default::default()
14     };
15     eframe::run_native(
16         "eframe template",
17         native_options,
18         Box::new(|cc| Ok(Box::new(cistercian_clock::CistercianClockApp::new(cc)))),
19     )
20 }



app.rs #

src/app.rs contains the main app logic. Change TemplateApp to CistercianClockApp here in lines 4, 12, 22 and 38:


1 /// We derive Deserialize/Serialize so we can persist app state on shutdown.
2 #[derive(serde::Deserialize, serde::Serialize)]
3 #[serde(default)] // if we add new fields, give them default values when deserializing old state
4 pub struct CistercianClockApp {
5     // Example stuff:
6     label: String,
7
8     #[serde(skip)] // This how you opt-out of serialization of a field
9     value: f32,
10 }



There is one final change in src/lib.rs, again replacing TemplateApp with CitercianClockApp:

src/rust.lib

rust


1 #![warn(clippy::all, rust_2018_idioms)]
2
3 mod app;
4 pub use app::CistercianClockApp;



There are a couple more customizations listed in the temple  , for WASM apps that we will skip over here. Save Cargo.toml, src/app.rs, src/lib.rs, and src/main.rs and now run the command:


cargo run



The app should work just as before. The title, and so on, in the app window will still read “eframe template”; we will change those later. Next, let’s continue the customizations, adding our own app logo.

🖼️ Adding a Custom App Logo or Icon in egui #

You will need a 256×256 pixel PNG logo for this part. If you already have an SVG logo, see the post on Open Source Favicon Generation & Optimization to convert it to a PNG.

Replace assets/icon-256.png with your PNG icon, then update src/main.rs to use it:

src/main.rs

rust


1 #![warn(clippy::all, rust_2018_idioms)]
2 #![cfg_attr(not(debug_assertions), windows_subsystem = "windows")] // hide console window on Windows in release
3
4 use egui::IconData;
5
6 // When compiling natively:
7 #[cfg(not(target_arch = "wasm32"))]
8 fn main() -> eframe::Result<()> {
9     env_logger::init(); // Log to stderr (if you run with `RUST_LOG=debug`).
10
11     let icon_image =
12             image::open("assets/icon-256.png").expect("Should be able to open icon PNG file");
13     let width = icon_image.width();
14     let height = icon_image.height();
15     let icon_rgba8 = icon_image.into_rgba8().to_vec();
16     let icon_data = IconData {
17         rgba: icon_rgba8,
18         width,
19         height,
20     };
21
22     let native_options = eframe::NativeOptions {
23         viewport: egui::ViewportBuilder::default()
24             .with_inner_size([400.0, 300.0])
25             .with_min_inner_size([300.0, 220.0])
26             .with_icon(icon_data),
27         ..Default::default()
28     };
29     eframe::run_native(
30         "eframe template",
31         native_options,
32         Box::new(|cc| Ok(Box::new(cistercian_clock::CistercianClockApp::new(cc)))),
33     )
34 }



In line 4, you see an example of including a dependency in Rust. In line 11 we use the image package (installed earlier) to convert the PNG into the RGBA8 format expected by egui. We could have imported the image similarly to use egui::IconData, as use image::open, then just used open(...) in line 11, though I preferred sticking with image::open (in line 11) to make it clearer where open comes from, limiting ambiguity, since open is a common function name.

Try rerunning your app, and you should see your own logo now!

Before moving on, let’s update the app title (displayed on the window) and the window size, in main.rs:

src/main.rs

rust


21     let native_options = eframe::NativeOptions {
22         viewport: egui::ViewportBuilder::default()
23             .with_inner_size([750.0, 600.0])
24             .with_min_inner_size([750.0, 600.0])
25             .with_icon(icon_data),
26         ..Default::default()
27     };
28     eframe::run_native(
29         "Cistercian Clock",
30         native_options,
31         Box::new(|cc| Ok(Box::new(cistercian_clock::CistercianClockApp::new(cc)))),
32     )



👀 cargo watch #

You can make your workflow slightly more efficient by automatically re-compiling and running your egui app each time you save a source file. cargo watch is handy here  . You can install it using Cargo:


cargo install cargo-watch



The simplest command is:


cargo watch



That will just run your app after each source file change. I tend to run:


cargo watch -x check -x clippy -x run



Which will check your code compiles, lint it and then run it. You can also throw -x test in there if working in a Test Driven Development workflow.

clippy is the Rust linter. Some people find it annoying, though I learn quite a bit from it. If clippy does not work, you might need to install first (rustup component add clippy).

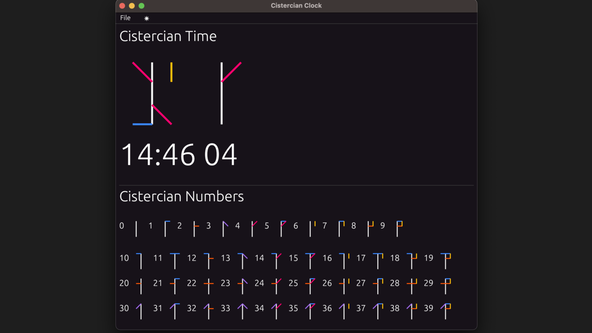

⌚️ Trying egui: Cistercian Clock Code #

We won’t go through the code line-by-line, instead, paste it in, then we will look at a few of the more interesting parts.

Update src/app.rs by pasting the chunks below, or just copying the complete file from the finished egui Cistercian Clock project repo  :

src/app.rs — click to expand code.

src/app.rs

rust


1 use chrono::{Local, Timelike};
2 use core::time::Duration;
3 use egui::{
4     epaint::Shadow,
5     scroll_area::ScrollBarVisibility,
6     style::{HandleShape, Selection, Widgets},
7     vec2, Color32,
8     FontFamily::Proportional,
9     FontId, Painter, Pos2, Rounding, ScrollArea, Sense, Stroke,
10     TextStyle::{self, Body, Button, Heading, Monospace, Name, Small},
11     Ui, Vec2, Visuals,
12 };
13
14 fn dark_mode_override() -> Visuals {
15     Visuals {
16         dark_mode: true,
17         override_text_color: Some(Color32::from_gray(252)),
18         widgets: Widgets::default(),
19         selection: Selection::default(),
20         hyperlink_color: Color32::from_rgb(90, 170, 255),
21         faint_bg_color: Color32::from_additive_luminance(5), // visible, but barely so
22         extreme_bg_color: Color32::from_gray(10),            // e.g. TextEdit background
23         code_bg_color: Color32::from_gray(64),
24         warn_fg_color: Color32::from_rgb(255, 143, 0), // orange
25         error_fg_color: Color32::from_rgb(255, 0, 0),  // red
26
27         window_rounding: Rounding::same(6.0),
28         window_shadow: Shadow {
29             offset: vec2(10.0, 20.0),
30             blur: 15.0,
31             spread: 0.0,
32             color: Color32::from_black_alpha(96),
33         },
34         window_fill: Color32::from_rgb(23, 18, 25),
35         window_stroke: Stroke::new(1.0, Color32::from_gray(60)),
36         window_highlight_topmost: true,
37
38         menu_rounding: Rounding::same(6.0),
39
40         panel_fill: Color32::from_rgb(23, 18, 25),
41
42         popup_shadow: Shadow {
43             offset: vec2(10.0, 20.0),
44             blur: 15.0,
45             spread: 0.0,
46             color: Color32::from_black_alpha(96),
47         },
48         resize_corner_size: 12.0,
49         text_cursor: Default::default(),
50         clip_rect_margin: 3.0, // should be at least half the size of the widest frame stroke + max WidgetVisuals::expansion
51         button_frame: true,
52         collapsing_header_frame: false,
53         indent_has_left_vline: true,
54
55         striped: false,
56
57         slider_trailing_fill: false,
58
59         handle_shape: HandleShape::Rect { aspect_ratio: 1.0 },
60
61         interact_cursor: None,
62
63         image_loading_spinners: true,
64
65         numeric_color_space: NumericColorSpace::GammaByte,
66     }
67 }
68
69 pub fn light_mode_override() -> Visuals {
70     Visuals {
71         dark_mode: false,
72         override_text_color: Some(Color32::from_rgb(4, 3, 15)),
73         widgets: Widgets::light(),
74         //selection: Selection::light(),
75         selection: Selection::default(),
76         hyperlink_color: Color32::from_rgb(0, 155, 255),
77         faint_bg_color: Color32::from_additive_luminance(5), // visible, but barely so
78         extreme_bg_color: Color32::from_gray(255),           // e.g. TextEdit background
79         code_bg_color: Color32::from_gray(230),
80         warn_fg_color: Color32::from_rgb(255, 100, 0), // slightly orange red. it's difficult to find a warning color that pops on bright background.
81         error_fg_color: Color32::from_rgb(255, 0, 0),  // red
82
83         window_shadow: Shadow {
84             offset: vec2(10.0, 20.0),
85             blur: 15.0,
86             spread: 0.0,
87             color: Color32::from_black_alpha(25),
88         },
89         window_fill: Color32::from_gray(255),
90         window_stroke: Stroke::new(1.0, Color32::from_gray(190)),
91
92         panel_fill: Color32::from_gray(255),
93
94         popup_shadow: Shadow {
95             offset: vec2(6.0, 10.0),
96             blur: 8.0,
97             spread: 0.0,
98             color: Color32::from_black_alpha(25),
99         },
100         text_cursor: TextCursorStyle {
101             stroke: Stroke::new(2.0, Color32::from_rgb(0, 83, 125)),
102             ..Default::default()
103         },
104         ..Visuals::dark()
105     }
106 }
107
108 /// We derive Deserialize/Serialize so we can persist app state on shutdown.
109 #[derive(serde::Deserialize, serde::Serialize)]
110 #[serde(default)] // if we add new fields, give them default values when deserializing old state
111 pub struct CistercianClockApp {
112     // Example stuff:
113     label: String,
114
115     #[serde(skip)] // This how you opt-out of serialization of a field
116     value: f32,
117 }



This adds imports used later and theme colour overrides. Next, add this chunk, to the same file.

src/app.rs — click to expand code.

src/app.rs

rust


107 impl CistercianClockApp {
108     /// Called once before the first frame.
109     pub fn new(cc: &eframe::CreationContext<'_>) -> Self {
110         // This is also where you can customize the look and feel of egui using
111         // `cc.egui_ctx.set_visuals` and `cc.egui_ctx.set_fonts`.
112
113         // Load previous app state (if any).
114         // Note that you must enable the `persistence` feature for this to work.
115         if let Some(storage) = cc.storage {
116             return eframe::get_value(storage, eframe::APP_KEY).unwrap_or_default();
117         }
118
119         Default::default()
120     }
121 }
122
123 struct Colours {
124     colour_0: Color32,
125     colour_1: Color32,
126     colour_2: Color32,
127     colour_3: Color32,
128     colour_4: Color32,
129     colour_6: Color32,
130 }
131
132 fn paint_unit_number(
133     painter: &mut Painter,
134     centre: Pos2,
135     scale: f32,
136     colours: &Colours,
137     number: u32,
138 ) {
139     let width = scale * (34.0 / 2.0 - 1.0);
140     let stroke_width = if scale < 2.0 { 2.0 } else { scale * 1.0 };
141     let Colours {
142         colour_0,
143         colour_1,
144         colour_2,
145         colour_3,
146         colour_4,
147         colour_6,
148     } = colours;
149     let stroke = Stroke::new(stroke_width, *colour_0);
150     painter.line_segment(
151         [centre - vec2(0.0, width), centre + vec2(0.0, width)],
152         stroke,
153     );
154
155     if number == 1 || number == 5 || number == 7 || number == 9 {
156         let stroke = Stroke::new(stroke_width, *colour_1);
157         painter.line_segment(
158             [
159                 centre - vec2(0.0, width),
160                 centre + vec2(scale * 10.0, -width),
161             ],
162             stroke,
163         );
164     }
165
166     if number == 2 || number == 8 || number == 9 {
167         let stroke = Stroke::new(stroke_width, *colour_2);
168         painter.line_segment(
169             [
170                 centre - vec2(0.0, width - scale * 10.0),
171                 centre + vec2(scale * 10.0, -width + (scale * 10.0)),
172             ],
173             stroke,
174         );
175     }
176
177     if number == 3 {
178         let stroke = Stroke::new(stroke_width, *colour_3);
179         painter.line_segment(
180             [
181                 centre - vec2(0.0, width),
182                 centre + vec2(scale * 10.0, -width + scale * 10.0),
183             ],
184             stroke,
185         );
186     }
187
188     if number == 4 || number == 5 {
189         let stroke = Stroke::new(stroke_width, *colour_4);
190         painter.line_segment(
191             [
192                 centre - vec2(0.0, width - scale * 10.0),
193                 centre + vec2(scale * 10.0, -width),
194             ],
195             stroke,
196         );
197     }
198
199     if number > 5 {
200         let stroke = Stroke::new(stroke_width, *colour_6);
201         painter.line_segment(
202             [
203                 centre + vec2(scale * 10.0, -width),
204                 centre + vec2(scale * 10.0, -width + scale * 10.0),
205             ],
206             stroke,
207         );
208     }
209 }
210
211 fn paint_tens_number(
212     painter: &mut Painter,
213     centre: Pos2,
214     scale: f32,
215     colours: &Colours,
216     number: u32,
217 ) {
218     let width = scale * (34.0 / 2.0 - 1.0);
219     let stroke_width = if scale < 2.0 { 2.0 } else { scale * 1.0 };
220     let Colours {
221         colour_1,
222         colour_2,
223         colour_3,
224         colour_4,
225         colour_6,
226         ..
227     } = colours;
228
229     if number == 1 || number == 5 || number == 7 || number == 9 {
230         let stroke = Stroke::new(stroke_width, *colour_1);
231         painter.line_segment(
232             [
233                 centre - vec2(scale * 10.0, width),
234                 centre + vec2(0.0, -width),
235             ],
236             stroke,
237         );
238     }
239     if number == 2 || number == 8 || number == 9 {
240         let stroke = Stroke::new(stroke_width, *colour_2);
241         painter.line_segment(
242             [
243                 centre - vec2(scale * 10.0, width - scale * 10.0),
244                 centre + vec2(0.0, -width + scale * 10.0),
245             ],
246             stroke,
247         );
248     }
249     if number == 3 {
250         let stroke = Stroke::new(stroke_width, *colour_3);
251         painter.line_segment(
252             [
253                 centre - vec2(scale * 10.0, width - scale * 10.0),
254                 centre + vec2(0.0, -width),
255             ],
256             stroke,
257         );
258     }
259     if number == 4 || number == 5 {
260         let stroke = Stroke::new(stroke_width, *colour_4);
261         painter.line_segment(
262             [
263                 centre - vec2(scale * 10.0, width),
264                 centre + vec2(0.0, -width + scale * 10.0),
265             ],
266             stroke,
267         );
268     }
269     if number > 5 {
270         let stroke = Stroke::new(stroke_width, *colour_6);
271         painter.line_segment(
272             [
273                 centre + vec2(-scale * 10.0, -width),
274                 centre + vec2(-scale * 10.0, -width + scale * 10.0),
275             ],
276             stroke,
277         );
278     }
279 }
280
281 fn paint_hundreds_number(
282     painter: &mut Painter,
283     centre: Pos2,
284     scale: f32,
285     colours: &Colours,
286     number: u32,
287 ) {
288     let width = scale * (34.0 / 2.0 - 1.0);
289     let stroke_width = if scale < 2.0 { 2.0 } else { scale * 1.0 };
290     let Colours {
291         colour_1,
292         colour_2,
293         colour_3,
294         colour_4,
295         colour_6,
296         ..
297     } = colours;
298
299     if number == 1 || number == 5 || number == 7 || number == 9 {
300         let stroke = Stroke::new(stroke_width, *colour_1);
301         painter.line_segment(
302             [
303                 centre + vec2(0.0, width),
304                 centre + vec2(scale * 10.0, width),
305             ],
306             stroke,
307         );
308     }
309     if number == 2 || number == 8 || number == 9 {
310         let stroke = Stroke::new(stroke_width, *colour_2);
311         painter.line_segment(
312             [
313                 centre + vec2(0.0, width - scale * 10.0),
314                 centre + vec2(scale * 10.0, width - scale * 10.0),
315             ],
316             stroke,
317         );
318     }
319     if number == 3 {
320         let stroke = Stroke::new(stroke_width, *colour_3);
321         painter.line_segment(
322             [
323                 centre + vec2(0.0, width),
324                 centre + vec2(scale * 10.0, width - scale * 10.0),
325             ],
326             stroke,
327         );
328     }
329     if number == 4 || number == 5 {
330         let stroke = Stroke::new(stroke_width, *colour_4);
331         painter.line_segment(
332             [
333                 centre + vec2(0.0, width - scale * 10.0),
334                 centre + vec2(scale * 10.0, width),
335             ],
336             stroke,
337         );
338     }
339     if number > 5 {
340         let stroke = Stroke::new(stroke_width, *colour_6);
341         painter.line_segment(
342             [
343                 centre + vec2(scale * 10.0, width - scale * 10.0),
344                 centre + vec2(scale * 10.0, width),
345             ],
346             stroke,
347         );
348     }
349 }
350
351 fn paint_thousands_number(
352     painter: &mut Painter,
353     centre: Pos2,
354     scale: f32,
355     colours: &Colours,
356     number: u32,
357 ) {
358     let width = scale * (34.0 / 2.0 - 1.0);
359     let stroke_width = if scale < 2.0 { 2.0 } else { scale * 1.0 };
360     let Colours {
361         colour_1,
362         colour_2,
363         colour_3,
364         colour_4,
365         colour_6,
366         ..
367     } = colours;
368
369     if number == 1 || number == 5 || number == 7 || number == 9 {
370         let stroke = Stroke::new(stroke_width, *colour_1);
371         painter.line_segment(
372             [
373                 centre + vec2(-scale * 10.0, width),
374                 centre + vec2(0.0, width),
375             ],
376             stroke,
377         );
378     }
379     if number == 2 || number == 8 || number == 9 {
380         let stroke = Stroke::new(stroke_width, *colour_2);
381         painter.line_segment(
382             [
383                 centre + vec2(-scale * 10.0, width - scale * 10.0),
384                 centre + vec2(0.0, width - scale * 10.0),
385             ],
386             stroke,
387         );
388     }
389     if number == 3 {
390         let stroke = Stroke::new(stroke_width, *colour_3);
391         painter.line_segment(
392             [
393                 centre + vec2(-scale * 10.0, width - scale * 10.0),
394                 centre + vec2(0.0, width),
395             ],
396             stroke,
397         );
398     }
399     if number == 4 || number == 5 {
400         let stroke = Stroke::new(stroke_width, *colour_4);
401         painter.line_segment(
402             [
403                 centre + vec2(-scale * 10.0, width),
404                 centre + vec2(0.0, width - scale * 10.0),
405             ],
406             stroke,
407         );
408     }
409     if number > 5 {
410         let stroke = Stroke::new(stroke_width, *colour_6);
411         painter.line_segment(
412             [
413                 centre + vec2(-scale * 10.0, width - scale * 10.0),
414                 centre + vec2(-scale * 10.0, width),
415             ],
416             stroke,
417         );
418     }
419 }
420
421 fn paint_number(
422     ui: &mut Ui,
423     colours: &Colours,
424     number: u32,
425     scale: Option<f32>,
426     show_arabic_numeral: Option<bool>,
427 ) {
428     let scale = if let Some(value) = scale { value } else { 1.0 };
429     assert!((0..=9_999).contains(&number));
430     match show_arabic_numeral {
431         Some(true) => {
432             match number {
433                 0..=999 => ui.label(number.to_string()),
434                 _ => ui.label(format!("{},{:003}", number / 1000, number % 1000)),
435             };
436         }
437         None | Some(false) => {}
438     }
439
440     let size = Vec2::splat(scale * 34.0);
441     let (response, mut painter) = ui.allocate_painter(size, Sense::hover());
442     let rect = response.rect;
443     let c = rect.center();
444
445     let unit = number % 10;
446     paint_unit_number(&mut painter, c, scale, colours, unit);
447     if number > 9 {
448         let tens = (number % 100) / 10;
449         paint_tens_number(&mut painter, c, scale, colours, tens);
450     }
451     if number > 99 {
452         let hundreds = (number % 1_000) / 100;
453         paint_hundreds_number(&mut painter, c, scale, colours, hundreds);
454     }
455     if number > 999 {
456         let thousands = (number % 10_000) / 1_000;
457         paint_thousands_number(&mut painter, c, scale, colours, thousands);
458     }
459 }
460
461 const DARK_CISTERCIAN_NUMERAL_COLOURS: Colours = Colours {
462     colour_0: Color32::from_gray(242),
463     colour_1: Color32::from_rgb(58, 134, 255),
464     colour_2: Color32::from_rgb(251, 86, 7),
465     colour_3: Color32::from_rgb(162, 106, 241),
466     colour_4: Color32::from_rgb(255, 0, 110),
467     colour_6: Color32::from_rgb(255, 190, 11),
468 };
469
470 const LIGHT_CISTERCIAN_NUMERAL_COLOURS: Colours = Colours {
471     colour_0: Color32::from_rgb(4, 3, 15),
472     colour_1: Color32::from_rgb(93, 93, 91),
473     colour_2: Color32::from_rgb(0, 122, 94),
474     colour_3: Color32::from_rgb(27, 42, 65),
475     colour_4: Color32::from_rgb(150, 2, 0),
476     colour_6: Color32::from_rgb(0, 122, 163),
477 };
478
479 fn paint_number_row(ui: &mut Ui, colours: &Colours, start: u32, end: u32) {
480     ui.horizontal(|ui| {
481         for number in start..end {
482             ui.horizontal_top(|ui| paint_number(ui, colours, number, None, Some(true)));
483         }
484     });
485 }
486
487 impl eframe::App for CistercianClockApp {
488     /// Called by the frame work to save state before shutdown.
489     fn save(&mut self, storage: &mut dyn eframe::Storage) {
490         eframe::set_value(storage, eframe::APP_KEY, self);
491     }



That includes the functions we call to draw the numbers.

Finally, replace the update function (in the same file):

src/app.rs — click to expand code.

src/app.rs

rust


508 impl eframe::App for CistercianClockApp {
509     /// Called by the frame work to save state before shutdown.
510     fn save(&mut self, storage: &mut dyn eframe::Storage) {
511         eframe::set_value(storage, eframe::APP_KEY, self);
512     }
513
514     /// Called each time the UI needs repainting, which may be many times per second.
515     fn update(&mut self, ctx: &egui::Context, _frame: &mut eframe::Frame) {
516         // Put your widgets into a `SidePanel`, `TopPanel`, `CentralPanel`, `Window` or `Area`.
517         // For inspiration and more examples, go to https://emilk.github.io/egui
518
519         egui::TopBottomPanel::top("top_panel").show(ctx, |ui| {
520             if ui.visuals().dark_mode {
521                 ctx.set_visuals(dark_mode_override());
522             } else {
523                 ctx.set_visuals(light_mode_override());
524             };
525
526             // The top panel is often a good place for a menu bar:
527
528             egui::menu::bar(ui, |ui| {
529                 // NOTE: no File->Quit on web pages!
530                 let is_web = cfg!(target_arch = "wasm32");
531                 if !is_web {
532                     ui.menu_button("File", |ui| {
533                         if ui.button("Quit").clicked() {
534                             ctx.send_viewport_cmd(egui::ViewportCommand::Close);
535                         }
536                     });
537                     ui.add_space(16.0);
538                 }
539
540                 egui::widgets::global_theme_preference_switch(ui);
541             });
542         });
543
544         let mut style = (*ctx.style()).clone();
545         style.text_styles = [
546             (Heading, FontId::new(30.0, Proportional)),
547             (Name("clock".into()), FontId::new(64.0, Proportional)),
548             (Body, FontId::new(18.0, Proportional)),
549             (Monospace, FontId::new(14.0, Proportional)),
550             (Button, FontId::new(14.0, Proportional)),
551             (Small, FontId::new(10.0, Proportional)),
552         ]
553         .into();
554         ctx.set_style(style);
555
556         egui::CentralPanel::default().show(ctx, |ui| {
557             let colours = if ui.visuals().dark_mode {
558                 DARK_CISTERCIAN_NUMERAL_COLOURS
559             } else {
560                 LIGHT_CISTERCIAN_NUMERAL_COLOURS
561             };
562             ui.ctx().request_repaint_after(Duration::new(1, 0));
563             // The central panel the region left after adding TopPanel's and SidePanel's
564             ui.heading("Cistercian Time");
565             ui.add_space(30.0);
566
567             let now = Local::now();
568             let hours_minutes: u32 = now.hour() * 100 + now.minute();
569             let seconds: u32 = now.second();
570             let time = now.format("%H:%M %S").to_string();
571             ui.horizontal(|ui| {
572                 paint_number(ui, &colours, hours_minutes, Some(4.0), None);
573                 paint_number(ui, &colours, seconds, Some(4.0), None);
574             });
575             ui.add_space(20.0);
576             ui.horizontal(|ui| {
577                 ui.style_mut().override_text_style = Some(TextStyle::Name("clock".into()));
578                 ui.label(time)
579             });
580             ui.add_space(20.0);
581
582             ui.separator();
583             ScrollArea::vertical()
584                 .auto_shrink(false)
585                 .scroll_bar_visibility(ScrollBarVisibility::default())
586                 .show(ui, |ui| {
587                     ui.heading("Cistercian Numbers");
588                     ui.add_space(30.0);
589                     paint_number_row(ui, &colours, 0, 10);
590                     ui.add_space(30.0);
591                     for tens in 1..10 {
592                         paint_number_row(ui, &colours, 10 * tens, (tens + 1) * 10);
593                         ui.add_space(15.0);
594                     }
595
596                     ui.add_space(30.0);
597                     ui.horizontal(|ui| {
598                         for number in 1..5 {
599                             ui.horizontal_top(|ui| {
600                                 paint_number(ui, &colours, number * 100, None, Some(true));
601                             });
602                         }
603                     });
604
605                     ui.add_space(30.0);
606                     ui.horizontal(|ui| {
607                         for number in 1..5 {
608                             ui.horizontal_top(|ui| {
609                                 paint_number(ui, &colours, number * 1_000, None, Some(true));
610                             });
611                         }
612                     });
613
614                     ui.add_space(30.0);
615                     ui.separator();
616
617                     ui.horizontal(|ui| {
618                         ui.with_layout(egui::Layout::bottom_up(egui::Align::LEFT), |ui| {
619                             powered_by_egui_and_eframe(ui);
620                             egui::warn_if_debug_build(ui);
621                         });
622                     });
623                 });
624         });
625     }
626 }



That should all work now, and when the app restarts, you will see the time using Arabic numerals and a Cistercian numbers cheat sheet, in a scrollable window. The light and dark themes have been updated, and the theme switch is now a single toggle button, replacing separating light and dark buttons.



🧐 Trying egui: Interesting Lines in the Code #

Trying egui: Overriding Themes #

To override the default colour theme, I created an entire new theme. This override (lines 14 – 84 in src/app.rs) specifies the colours to use for text, warning, hyperlinks etc, using RGB values.

src/app.rs

rust


519 egui::TopBottomPanel::top("top_panel").show(ctx, |ui| {
520     if ui.visuals().dark_mode {
521         ctx.set_visuals(dark_mode_override());
522     } else {
523         ctx.set_visuals(light_mode_override());
524     };
525
526   // The top panel is often a good place for a menu bar:
527
528   egui::menu::bar(ui, |ui| {
529       // NOTE: no File->Quit on web pages!
530       let is_web = cfg!(target_arch = "wasm32");
531       if !is_web {
532           ui.menu_button("File", |ui| {
533               if ui.button("Quit").clicked() {
534                   ctx.send_viewport_cmd(egui::ViewportCommand::Close);
535               }
536           });
537           ui.add_space(16.0);
538       }
539
540       egui::widgets::global_theme_preference_switch(ui);
541   });
542 });



Clicking the toggle button switches the active visuals (code in line 531). egui will act on the changes in the next loop. dark_mode_override() just returns the struct with the dark mode visuals, I could have pasted the struct in place in line 513 (and similarly for the light mode).

Trying egui: Requesting a Repaint #

Comment out line 562 , then run the app. The clock now only updates when you interact with the window; moving the mouse pointer, or clicking. This is fine for many apps, but not ideal for a clock.

We need the clock time to update on its own. request_repaint_after helps here. I set it to update every second, and you can go smaller if you require higher precision.

core::time::Duration  is a Rust core library struct. new is its initializer, which lets you specify a duration in seconds (first parameter) and nanoseconds (second parameter). The Rust Core Library is smaller than the Rust Standard Library, and includes functionality which can run on more systems (some embedded systems or microchips have core support, but no std support).

Add line 562 back in so the clock updates normally again.

src/app.rs

rust


556 egui::CentralPanel::default().show(ctx, |ui| {
557     let colours = if ui.visuals().dark_mode {
558         DARK_CISTERCIAN_NUMERAL_COLOURS
559     } else {
560         LIGHT_CISTERCIAN_NUMERAL_COLOURS
561     };
562     ui.ctx().request_repaint_after(Duration::new(1, 0));
563     // The central panel the region left after adding TopPanel's and SidePanel's
564     ui.heading("Cistercian Time");
565     ui.add_space(30.0);
566 });



Trying egui: Adding a Vertical Scroll #

We can also add a scrollable area, in egui, with only a few lines of code:

src/app.rs

rust


583 ScrollArea::vertical()
584     .auto_shrink(false)
585     .scroll_bar_visibility(ScrollBarVisibility::default())
586     .show(ui, |ui| {
587         ui.heading("Cistercian Numbers");
588         ui.add_space(30.0);
589         paint_number_row(ui, &colours, 0, 10);
590         ui.add_space(30.0);
591         for tens in 1..10 {
592             paint_number_row(ui, &colours, 10 * tens, (tens + 1) * 10);
593             ui.add_space(15.0);
594         }
595     // ...TRUNCATED
596     });



Here, we wrap the scrollable content in a ScrollArea show method closure.

Reach out if anything is not clear, so I can update the article for everyone. Scan the code for more egui features. We are only scratching the surface of what egui can do here. See the Wrapping Up section, further down, for pointers on where to go to learn more.

💿 Building and Installing the App #

So far, we have been running the app in debug mode. To build a native app, run:


cargo build --release



This will optimize the app for speed and binary size, so compilation will be a touch slower than previously. The release mode app will be at ./target/release/cistercian_clock. You can run it from there, though it will be more convenient to install it on your system:


cargo install --path .



That should place the app in ~/.cargo/bin or somewhere equivalent on your system (--path in the command above is the path to the app we want to install, so run the command from the project directory). If that folder is included in your path, you will be able to run the installed app just using its name: cistercian_clock.

Updating egui (for later) #

This post was written with egui 0.24, which uses Rust 1.72. Later versions might use a newer Rust version. When you update the egui and eframe in Cargo.toml, also update the toolchain.channel field in the rust-toolchain file to the Rust version your new egui release pairs with.

🤨 What are immediate mode alternatives? #

At the start, we mentioned that egui uses immediate mode. It makes creating user interfaces quicker, without the need for callbacks to add interactivity. egui is used in games, with integrations for popular gaming engines. Some developers prefer it to creating Electron based apps, Gossip, the portable Nostr client is an example here.

One drawback of immediate mode is that it can make it harder to position content precisely. For example, centring a button horizontally. For precise layouts, staying in the Rust ecosystem, you might want to try Tauri — it uses web technology, allowing you to apply your existing CSS knowledge for pixel perfect layouts. egui also currently falls short in terms of accessibility. AccessKit  has improved matters here, though screen reader users may still prefer web content to your egui app, albeit with AccessKit enabled.

🙌🏽 Trying egui: Wrapping Up #

In this trying egui post, we saw some key egui features and why you should consider it for your Rust GUI. More specifically, we saw:

• what immediate mode is;
• how to create an egui app; and
• how to add a custom logo or icon to an egui app.

The source code for the complete project is in a Rodney Lab GitHub repo  . For far more egui features, see the egui demo app  . It includes links to the source code for the various widgets. If you need more specifics on the APIs, then also see the egui docs  .

Let me know what you plan to build with egui. Also, if you have already used Dear ImGui, let me know how egui compares.

🙏🏽 Trying egui: Feedback #

If you have found this post useful, see links below for further related content on this site. I do hope you learned one new thing from the video. Let me know if there are any ways I can improve on it. I hope you will use the code or starter in your own projects. Be sure to share your work on X, giving me a mention, so I can see what you did. Finally, be sure to let me know ideas for other short videos you would like to see. Read on to find ways to get in touch, further below. If you have found this post useful, even though you can only afford even a tiny contribution, please consider supporting me through Buy me a Coffee.


Rodney
@askRodney
Just tried out egui. It’s a 🦀 Rust, immediate mode GUI tool, inspired by the C++ Dear ImGui library.

— it’s great for game back-ends;
— quick to code in because of immediate mode; and
— there’s a demo app with a lot of code examples.

#askRodney #learnRust pic.twitter.com/nwHYxU5fUR
— Rodney (@askRodney) January 3, 2024

Finally, feel free to share the post on your social media accounts for all your followers who will find it useful. As well as leaving a comment below, you can get in touch via @askRodney on X (previously Twitter) and also askRodney on Telegram  . Also, see further ways to get in touch with Rodney Lab. I post regularly on Deno as well as Search Engine Optimization among other topics. Also, subscribe to the newsletter to keep up-to-date with our latest projects.
