Svelte Real‑time Multiplayer Game: User Presence 🙋🏽 # Svelte Real-time Multiplayer Game: User Presence 🙋🏽 #

Svelte Real‑time Multiplayer Game: User Presence 🙋🏽 #

Published: 2 years ago

6 minute read

Gunning Fog Index: 6.1

Content by Rodney

🙋🏽 Adding Presence or Awareness to Real‑time Apps #

We continue our look at the Svelte real-time multiplayer game, this time having a look at presence, which is also known as awareness.

In an earlier SvelteKit Ably post, we had a first look at creating a real-time, multiplayer online game using Ably to provide serverless WebSockets. The game is basic; two players take turns to try to claim the most squares on a grid. They claim individual squares by marking each of its four sides with their colour. Although the game is simple, it makes use of powerful real-time features useful for chat and more sophisticated multi-user applications.

In this post, we turn to improving user experience by adding a lobby. Players enter the lobby when they are ready to play, and from there can invite others to join them in a game, as well as accept challenges from players.

What are Presence and Awareness? #

Presence and awareness are, essentially, the same thing, and allow users or players to advertise their presence on the channel. This is just what we need for the game; when a player enters the lobby, they want other waiting players to know they are available to play. Similarly, the player entering wants to know who is online and potentially to invite them to play. Presence or awareness makes this possible.

There are a few prominent providers of WebSocket services for real-time interactions. Ably, uses the term presence while partykit uses awareness. Two other providers: PubNub and Pusher also use the term presence.

Now we know what presence and awareness are, let’s see how they got used in the Sqvuably game.

blurry low resolution placeholder image — Svelte Real-time Multiplayer Game: Using presence to make players aware of other players whom they can challenge.

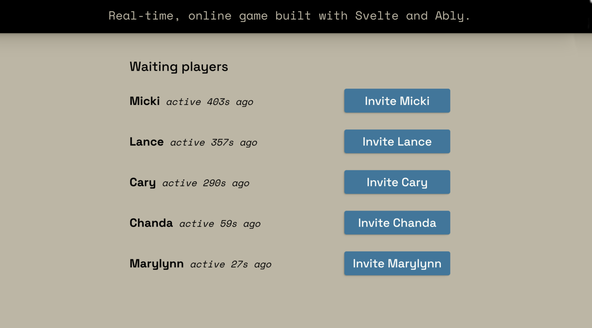

Svelte Real-time Multiplayer Game: Screen capture shows lobby for game with five players present. For each player, you see their name and an adjacent button for inviting them to play. — Svelte Real-time Multiplayer Game: Using presence to make players aware of other players whom they can challenge.

🧱 What we’re Building #

Similarly to the previous post on the Sqvuably game, we won’t build presence from start-to-finish. Instead, the focus here, is on code snippets which demonstrate the main features and how you can use presence with Ably in Svelte. The full code for the game is in a Git repo (linked below), which you can clone for further details.

Please enable JavaScript to watch the video 📼

Svelte Real-time Multiplayer Game: Using presence or awareness in multi-player game.

The main new feature is the lobby, which uses presence. From the lobby, you can invite other users to join you in game and also, accept invitations from other players. Players will automatically leave the lobby when they start their new game.

🛋️ Lobby Client Code #

As you might expect, there is no extra server-side setup to enable presence. In the earlier user flow, we assigned users a token server-side. We used that token to initialize an Ably WebSocket from the frontend and join a channel. Now, we need to set the user up for presence, once the channel is established.

src/routes/lobby/+page.svelte

svelte

    1 <script lang="ts">
2 	import app from '$lib/configuration';
3 	import type { Types } from 'ably';
4 	import { Realtime } from 'ably';
5 	import { onMount } from 'svelte';
6 	import type { PageData } from './$types';
7
8 	export let data: PageData;
9
10 	const { ablyChannelName } = app;
11
12 	let { myClientId, name, token } = data ?? {};
13
14 	let channel: Types.RealtimeChannelPromise | null = null;
15
16 	onMount(async () => {
17 		const ably = new Realtime.Promise({
18 			...token,
19 			authCallback: () => {	}
20 		});
21
22 		await ably.connection.once('connected');
23
24 		channel = ably.channels.get(ablyChannelName);
25
26 		await channel?.attach();
27
28 		await channel?.presence.enter({ name });
29
30 		await channel.presence.subscribe(async (presenceUpdate) => {
31 			const { action, data } = presenceUpdate;
32
33 			const updatedPresentMembers = (await channel?.presence.get()) ?? [];
34 			if (updatedPresentMembers) {
35 				/* logic to update UI with new presence data */
36 			}
37 		});
38 	});
39
40 </script>

Up to line 28 the code does not differ much from the earlier version. We see presence for the first time in line 28. You access presence methods via the channel object, and users have to join the channel presence actively (joining is not automatic):

    await channel?.presence.enter(data);

data here can be a string or, like we have above, an object. If opting for an object, make sure it is JSON serializable. These data will be available (in client code) to all another users subscribed to the channel. In fact, to receive presence data, we need to subscribe to the channel presence feed (as in line 30). The provided callback function is for the logic we want to run each time the client receives data on the presence channel.

For this game, we just need to update the list of available players in the user interface, when a new player enters.

Ably provides other presence methods; as well as presence.enter, there is a presence.leave method, again handy to update the interface, removing players who are no longer available, perhaps because they have started playing a game. We can also use a presence.update method for custom updates.

Example Presence Message #

Beyond the data string or object, which we saw above, presence updates include an action and some other meta, such as a time stamp. The action will be enter, leave or update and is helpful for filtering incoming presence data in the callback.

Here is an example update:

    {
  "id": "frkjZFEfH-:0:0",
  "clientId": "4a4f8b8a-0207-43d8-b027-ad9adf44dd82",
  "connectionId": "frkjZFEfH-",
  "timestamp": 1684862512507,
  "encoding": null,
  "data": {
    "name": "Micki"
  },
  "action": "enter"
}

Note, the clientId is assigned when we create the user token. A client can potentially connect multiple times and each of these connections shares the same clientId, but has a unique connectionId.

⚡️ Presence Updates #

Just like presence.enter, presence.leave and presence.update can include a data payload. We can use that payload with presence.update to handle game invitation logistics. As an example, when a user clicks the Invite Micki button, we can send a presence update:

    await channel?.presence.update({
	type: 'invite',
	sender: myClientId,
	target: player2,
	gameId,
	name
});

This is a custom data payload for the game. All players on the channel will receive this, which is why we include the target player ID. That can be used to filter presence updates in the presence.subscribe callback. As well as letting someone know they have been invited to join a game, these updates could be used to update everyone’s user interface; letting them know Micki has an open invitation.

The game includes similar channel updates for accepting and rescinding an invitation. Finally, when players agree to play, their clients will both send a channel.leave presence message.

As before, you can lift this code for use in a chat or other real-time app. In a chat app, you could, for example, let users leave a custom presence message when they are stepping away from their computer for a few minutes. See the Ably presence tutorial for more details on the API.

🤔 Svelte Real‑time Multiplayer Game: What Next? #

The game is by no means polished, and I am considering further features and services to improve it. In terms of the real-time and WebSocket side of things, it probably just needs some minor tweaks. The game is currently hosted by Netlify in a serverless environment. It might be nice to use serverless Redis to keep track of top scores or even top players. Let me know your ideas!

🗳 Poll #

What kind of app will you next add real-time to?

🙌🏽 Svelte Real‑time Multiplayer Game: Wrapping Up #

In this post, we had a look at presence and awareness for a Svelte real-time multiplayer game. Although we focussed on a game, we saw, more generally:

what presence and awareness are;
how you might use presence updates to surface status changes; and
how to use Ably presence.

Please see the full repo code on the Rodney Lab GitHub repo . I do hope you have found this post useful and can use the code in your own Svelte real-time multiplayer game or app. Let me know if you have any suggestions for improvements to the post. Also reach out with ideas on new features to add to the game. Drop a comment below or reach out on other channels.

🏁 Svelte Real‑time Multiplayer Game: Summary #

What are presence and awareness in real-time apps? #: Presence and awareness are two terms used, by different serverless WebSocket providers, for the same concept. They amount to users in a multi-user environment, like a chat app or multiplayer game, being aware of each other. We saw an example using presence to update user status in a multi-user game to let users know which players are available to play. Presence and awareness can similarly be used in a chat app, for broadcasting user status data or updating everyone when someone leaves.
How does Ably presence work? #: With Ably, you can set up presence on an existing channel, using the JavaScript SDK. Within client code, you can send enter, leave and update messages. These may include custom data payloads as a string or JavaScript object, so long as is can be serialized as a JSON string. For the client to receive updates on the channel, you need to subscribe them. Typically, you include a callback function in the subscription. That callback function might have filters over the presence updates and logic for pushing the latest presence data to the user interface.
How are client ID and connection ID on Ably presence different? #: A client ID is usually associated with a particular user and set when the user’s authentication token is created. A user may have multiple open connections at some point. As an example, they might connect to a channel on a phone and a tablet. In that case, they could have the same client ID across both devices, but different connection IDs.
