Macroquad Rapier ECS: Using Bevy ECS in Macroquad Game 🦀 # Macroquad Rapier ECS: Using Bevy ECS in Macroquad Game 🦀 #

Macroquad Rapier ECS: Using Bevy ECS in Macroquad Game 🦀 #

Published: 7 months ago

7 minute read

Gunning Fog Index: 7.5

Content by Rodney

🐣 Using Bevy Entity Component System outside of Bevy #

Not every game needs an Entity Component System (ECS), but for this Macroquad Rapier ECS post, I was keen to see how you might add an ECS to a Macroquad game with Rapier physics.

In a previous post, I used the Shipyard ECS with Macroquad. I have been working through a build-your-own physics engine tutorial, which used the Bevy game engine. I loved the ergonomics of the embedded ECS, so thought, I would take it for a spin here. Rapier the Rust physics engine used here has a Bevy plugin, but I wanted to try using both Rapier and the stand-alone Bevy ECS outside of Bevy, just for the challenge.

🧱 Macroquad Rapier ECS: What I Built #

I continued with the bubble simulation, used for a few recent posts. It had no ECS, dozens of entities and a few other features that made it interesting to try with an ECS data model. So that was my starting point.

blurry low resolution placeholder image — Macroquad Rapier ECS: Floating Bubble Example

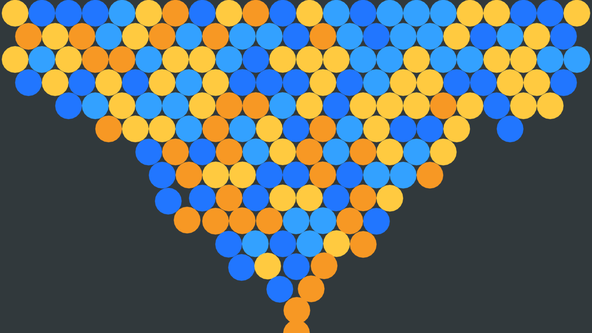

Macroquad Rapier ECS: A collection of yellow, orange, and blue balls have floated to the top of the window in a screen-capture. They are tightly packed, though not evenly distributed, with the collection being more balls deep at the centre of the window. — Macroquad Rapier ECS: Floating Bubble Example

The simulation releases bubbles which float to the top of the screen, where they are trapped by a Rapier height field. Once all existing bubbles are settled, the simulation spawns a fresh one.

The simulation uses a random number generator to decide on the initial velocity of spawned balls, and has running and paused states. The simulation triggers the paused state when the bubbles almost completely fill the window. Both the random number generator and the simulation state are singletons, and fit well into the ECS resource model. I also put the physics engine itself into an ECS resource. The C/C++ flecs ECS library, for example, calls resources singletons.

The Simulation within the ECS Model #

As you would expect, each bubble is an entity. If you are new to ECSs you might imagine the ECS entities as rows of a database table. In this database world, the table columns are components. In my case, the balls all have the same components:

a circle static mesh (which encodes colour and size data needed for rendering);
a circle collider (for handling physical collisions with Rapier); and
position and velocity components (used for updating the simulation physics).

Systems mutate the component properties, for example, there is a ball update system, which uses Rapier, to work out what the current velocity of the bubble is, at each step, then update the velocity component.

In the following sections, we look at some code snippets to help illuminate the points here, and hopefully give you an idea of how I put the simulation together, adding an ECS to Macroquad. The full code is on GitHub, and there is a link to it further down.

🧩 Components #

I just mentioned that bubble entities each have a few components. Here is some example code for spawning a new ball using the simulation ECS:

src/main.rs

rust

    91 let _ball_entity = world.spawn((
92     Position(new_ball_position),
93     CircleMesh {
94         colour: BALL_COLOURS[macroquad_rand::gen_range(0, BALL_COLOURS.len())],
95         radius: Length::new::<length::meter>(BALL_RADIUS),
96     },
97     CircleCollider {
98         radius: Length::new::<length::meter>(BALL_RADIUS),
99         physics_handle: None,
100     },
101     Velocity(new_ball_velocity),
102 ));

The new entity gets a Position, CircleMesh, CircleCollider and Velocity. The number of components here is arbitrary, and not fixed (as it might be when calling a constructor using an object-oriented approach). This grants flexibility as you develop the simulation or game.

Also note, I follow a Rust convention in naming the _ball_entity identifier. The initial underscore (_) indicates the identifier is not used anywhere else in the scope. We do not need it later, since the systems used to query and mutate the component properties, operate on entities with specific sets of components (properties). We will see this more clearly later.

In an ECS model, the entity is not much more than an integer, which Bevy ECS can use as an ID.

Units of Measurement #

In a previous post on adding units of measurement to a Rapier game, I introduced the length units used in the snippet above. This pattern of using units leveraging Rusts type system, sense-checking calculations and helping to avoid unit conversion errors.

🏷️ Macroquad Rapier ECS: Tags #

The Position and Velocity components, mentioned before, are structs with associated data. You can also have ECS tags, which are akin to components without data. Rapier has a type of collider that just detects a collision, and beyond that does not interact with the physics system, these are sensors.

blurry low resolution placeholder image — Macroquad Rapier ECS: Floor Sensor

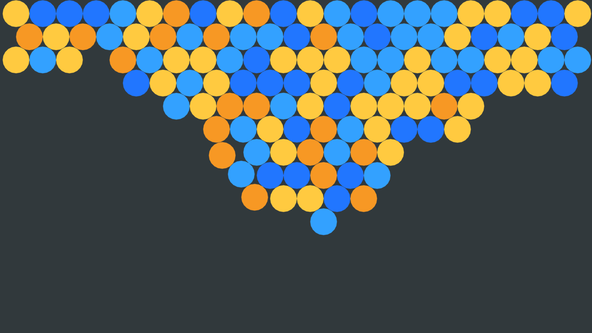

Macroquad Rapier ECS: A collection of yellow, orange, and blue balls have floated to the top of the window in a screen-capture. They are tightly packed, though not evenly distributed, with the ball reaching almost down to the ground in the centre. A lone ball sits bottom centre on the floor of the window. — Macroquad Rapier ECS: Floor Sensor

I used a Sensor tag in the ECS for colliders that are sensors, which helps to separate them out when running systems. The only sensor in the simulation runs along the bottom of the window. Towards the end of the simulation, when the window is almost full, a newly spawned bubble will inevitably bounce off an existing one and collide with the floor sensor. I added a system to pause the simulation when this occurs, effectively ending the simulation.

src/components.rs

rust

    34 #[derive(Component, Debug)]
35 pub struct CuboidCollider {
36     pub half_extents: Vector2<f32>,
37     pub position: Isometry<f32, Unit<Complex<f32>>, 2>,
38     pub translation: Vector2<f32>,
39 }
40
41 #[derive(Component, Debug)]
42 pub struct Sensor;

This, above, code snippet shows a CuboidCollider (used for the floor sensor), which is a regular component and then the Sensor tag. The code snippet, below, initializes the floor sensor:

src/systems.rs

rust

    196 pub fn spawn_ground_sensor_system(mut commands: Commands) {
197     let collider_half_thickness = Length::new::<length::meter>(0.05);
198     let window_width = Length::new::<pixel>(WINDOW_WIDTH);
199     let window_height = Length::new::<pixel>(WINDOW_HEIGHT);
200     commands.spawn((
201         CuboidCollider {
202             half_extents: vector![
203                 0.5 * window_width.get::<length::meter>(),
204                 collider_half_thickness.value
205             ],
206             translation: vector![
207                 0.0,
208                 (-window_height - collider_half_thickness).get::<length::meter>()
209             ],
210             position: Isometry2::identity(),
211         },
212         Sensor,
213     ));
214 }

Note, the Sensor tag is included. To spawn the wall colliders on either side of the window, a very similar block is used, only omitting the Sensor tag. We will see how this can be used with systems next.

🎺 Systems #

Systems are code blocks, which are only run on components belonging to a specified component set. As an example, here is the system for updating bubble position and velocity within the game loop:

src/systems.rs

rust

    122 pub fn update_balls_system(
123     mut query: Query<(&mut Position, &mut Velocity, &CircleCollider)>,
124     physics_engine: Res<PhysicsEngine>,
125 ) {
126     for (mut position, mut velocity, circle_collider) in &mut query {
127         if let Some(handle) = circle_collider.physics_handle {
128             let ball_body = &physics_engine.rigid_body_set[handle];
129             position.0 = vector![
130                 Length::new::<length::meter>(ball_body.translation().x),
131                 Length::new::<length::meter>(ball_body.translation().y)
132             ];
133             velocity.0 = vector![
134                 VelocityUnit::new::<velocity::meter_per_second>(ball_body.linvel().x),
135                 VelocityUnit::new::<velocity::meter_per_second>(ball_body.linvel().y)
136             ];
137         }
138     }
139 }

This system runs on any entity that satisfies the query of having Position, Velocity and CircleCollider components. We can be more prescriptive, choosing entities that have a set of components, and also, either do, or do not have some other component or tag. We use With when creating the floor sensor during the simulation initialization:

src/system.rs

rust

    94 pub fn create_cuboid_sensors_system(
95     query: Query<&CuboidCollider, With<Sensor>>,
96     mut physics_engine: ResMut<PhysicsEngine>,
97 ) {
98     for collider in query.iter() {
99         let new_collider =
100             ColliderBuilder::cuboid(collider.half_extents.x, collider.half_extents.y)
101                 .position(collider.position)
102                 .translation(collider.translation)
103                 .sensor(true)
104                 .build();
105         physics_engine.collider_set.insert(new_collider);
106     }
107 }

As you might expect, the equivalent code for creating the side wall colliders uses Without in its query, and omits .sensor(true) in its Rapier setup code.

📆 Schedules #

We use ECS schedules to determine when systems run. The simulation has:

a setup schedule, run once during simulation setup,
a running schedule, executed on every run through the game loop in simulate/running mode; and
a paused schedule, runs when we have paused the simulation.

Bevy ECS organizes the systems above into these schedules, which can include constraints to ensure systems run in the right order.

Here is the paused schedule code:

        let mut paused_schedule = Schedule::default();
    paused_schedule.add_systems(draw_balls_system);

This just needs to draw the balls (the screen is cleared in each game loop iteration, even while the simulation is paused). The running schedule features more systems.

That code above is triggered in the game loop, while the simulation state is set to paused:

src/main.rs

rust

    148     loop {
149         // TRUNCATED...
150         clear_background(GUNMETAL);
151
152         let simulation_state = world
153             .get_resource::<SimulationState>()
154             .expect("Expected simulation state to have been initialised");
155
156         match &simulation_state.mode {
157             SimulationMode::Running => {
158                 playing_schedule.run(&mut world);
159             }
160             SimulationMode::Paused => paused_schedule.run(&mut world),
161         }
162
163         next_frame().await;
164     }

That’s it! We covered all the major constituents of an ECS!

Please enable JavaScript to watch the video 📼

Rapier Physics with Units of Measurement: bubbles example

🗳 Poll #

Which Rust ECS will you use next?

🙌🏽 Macroquad Rapier ECS: Wrapping Up #

In this post on Macroquad Rapier ECS, we got an introduction to working with an ECS in Macroquad. In particular, we saw:

the main constituents of an ECS including resources, schedules and tags, as well as entities, components, and systems;
why you might want to add tags, and how you can use them in Bevy ECS system queries along with With and Without; and
ECS schedules for different game or simulation states.

I hope you found this useful. As promised, you can get the full project code on the Rodney Lab GitHub repo . I would love to hear from you, if you are also new to Rust game development. Do you have alternative resources you found useful? How will you use this code in your own projects?
