Godot Rust gdext: GDExtension Rust Game Dev Bindings 🤖 🦀 # Godot Rust gdext: GDExtension Rust Game Dev Bindings 🤖 🦀 #

🧑🏽‍🎓 gdext Learning Resources #

gdext provides GDExtension bindings for Godot 4. If you are working with Godot 4, skip over gdnative resources, which relate to the older Godot 3 API.

The best starting point is probably the godot-rust book  , which starts by setting up with gdext and runs through a basic code example. The book then move on to more advanced topics, these are really helpful, and you will probably want to keep the book open even if you jump to working on your own game after working through the initial chapters.

The official, online Rust godot docs  document APIs. If you have to work offline, cargo lets you open these from a local source in a browser:


cargo doc --open --package godot



Since the gdext APIs mirror GDScript APIs, you will often want to check the GDScript API docs  for additional background.

Another fantastic resource is the example game code in the gdext GitHub repo for a Dodge the Creeps game  (which will sound familiar if you have followed the official Godot, GDScript-based, tutorial  ). You can try building it or just dip into for help to unblock if you get stuck working on your own game.

🧱 What I Built #

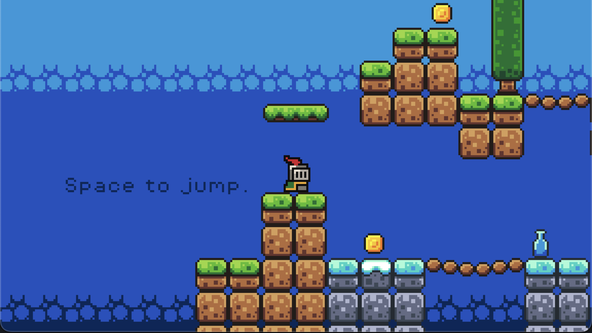

After working though the gdext Hello World, I thought a good way to learn more APIs would be to start converting a game I already had from GDScript to Godot Rust gdext. For this, I picked the Knights to See You game I made by following the How to make a Video Game - Godot Beginner Tutorial  .

I followed the guidelines in the godot-rust book, but made a small change, in the project file structure. This made it slightly more convenient to work in the Terminal from the project root folder, and also simplified the project CI configuration.

📂 Folder Structure #

The change I made from the godot-rust book, which I alluded to before was to set the project up using Cargo Workspaces  . The rust folder is exactly as the book recommends, and contains a Cargo.toml file.


├── Cargo.toml
├── godot
│   ├── assets
│   │   ├── fonts
│   │   ├── music
│   │   ├── sounds
│   │   └── sprites
│   ├── export_presets.cfg
│   ├── knights-to-see-you.gdextension
│   ├── project.godot
│   ├── scenes
│   └── scripts
└── rust
    ├── Cargo.toml
    └── src
        ├── lib.rs
        └── player.rs



I, just, added another Cargo.toml file to the root directory, where I created a new workspace, adding that rust directory:


[workspace]
members = ["rust"]
resolver = "2"



This changes the Rust output target directory, moving it up a level, so I had to update the paths listed in my godot/<PROJECT>.gdextension file:


1 [configuration]
2 entry_symbol = "gdext_rust_init"
3 compatibility_minimum = 4.2
4 reloadable = true
5
6 [libraries]
7 linux.debug.x86_64 = "res://../target/debug/librust.so"
8 linux.release.x86_64 = "res://../target/release/librust.so"
9 windows.debug.x86_64 = "res://../target/debug/librust.dll"
10 windows.release.x86_64 = "res://../target/release/librust.dll"
11 macos.debug = "res://../target/debug/librust.dylib"
12 macos.release = "res://../target/release/librust.dylib"
13 macos.debeg.arm64 = "res://../target/debug/librust.dylib"
14 macos.release.arm64 = "res://../target/release/librust.dylib"



👀 Rust Hot Reloading and Watching Files #

GDExtension for Godot 4.2 supports hot reloading out of the box. To speed up your coding feedback cycle, use cargo watch to recompile your Rust code automatically  when you save a Rust source file. Install cargo watch (if you need to):


cargo install cargo-watch --locked



Then, you can run:


cargo watch -cx check -x clippy -x build



which will clear the window, run cargo check, cargo clippy then, cargo build each time you save the Rust source. Now you can hit save then jump straight to Godot Engine to test play the game.

🦀 gdext API Snippets #

I started the switch from GDScript to Godot Rust gdext with the Player scene. In the original game, the Player Scene was a CharacterBody2D.

Rust does not easily handle Object-oriented Programming inheritance, and gdext opts for a composition approach. Following the book, you will see the recommended pattern, here, is to create a Player struct in Rust with a base field of type Base<ICharacterBody2D>. That base field then provides access to the character properties that you are familiar with from GDScript.

Here are some API snippets (with equivalent GDScript) to give you a feel for gdext.

Updating Character Velocity #

Using GDScript:


velocity.x = 100.0
velocity.y = 0.0



Using gdext:


  self.base_mut().set_velocity(Vector2::new(100.0, 0.0));



base_mut(), here, returns a mutable reference to the base field on Player, mentioned above. You set and get CharacterBody2D properties using self.base() and self.base_mut().

Gravity and Project Settings #

To get project default gravity value with GDScript, you can use:


var gravity = ProjectSettings.get_setting("physics/2d/default_gravity")



The equivalent in gdext is:


let gravity = ProjectSettings::singleton()
    .get_setting("physics/2d/default_gravity".into())
    .try_to::<f64>()
    .unwrap();



Setting Animations #

The Player scene has an AnimatedSprite2D node. Typically, you can reference that node in GDScript with something like this:


@onready var animated_sprite = $AnimatedSprite2D


# TRUNCATED...


animated_sprite.play("idle")



In gdext, you can set the sprite like so:


let mut animated_sprite = self
    .base()
    .get_node_as::<AnimatedSprite2D>("AnimatedSprite2D");

// Play animation
animated_sprite.play_ex().name("idle".into()).done();



Full Comparison #

For reference, here is the full code for the Rust Player class (rust/src/player.rs):


1 use godot::{
2     builtin::Vector2,
3     classes::{AnimatedSprite2D, CharacterBody2D, ICharacterBody2D, Input, ProjectSettings},
4     global::{godot_print, move_toward},
5     obj::{Base, WithBaseField},
6     prelude::{godot_api, GodotClass},
7 };
8
9 #[derive(GodotClass)]
10 #[class(base=CharacterBody2D)]
11 struct Player {
12     speed: f64,
13     jump_velocity: f64,
14
15     base: Base<CharacterBody2D>,
16 }
17
18 enum MovementDirection {
19     Left,
20     Neutral,
21     Right,
22 }
23
24 #[godot_api]
25 impl ICharacterBody2D for Player {
26     fn init(base: Base<CharacterBody2D>) -> Self {
27         godot_print!("Initialise player Rust class");
28         Self {
29             speed: 130.0,
30             jump_velocity: -300.0,
31
32             base,
33         }
34     }
35
36     fn physics_process(&mut self, delta: f64) {
37         let Vector2 {
38             x: velocity_x,
39             y: velocity_y,
40         } = self.base().get_velocity();
41
42         let input = Input::singleton();
43
44         // handle jump and gravity
45         let new_velocity_y = if self.base().is_on_floor() {
46             if input.is_action_pressed("jump".into()) {
47                 #[allow(clippy::cast_possible_truncation)]
48                 {
49                     self.jump_velocity as f32
50                 }
51             } else {
52                 velocity_y
53             }
54         } else {
55             let gravity = ProjectSettings::singleton()
56                 .get_setting("physics/2d/default_gravity".into())
57                 .try_to::<f64>()
58                 .expect("Should be able to represent default gravity as a 32-bit float");
59             #[allow(clippy::cast_possible_truncation)]
60             {
61                 velocity_y + (gravity * delta) as f32
62             }
63         };
64
65         // Get input direction
66         let direction = input.get_axis("move_left".into(), "move_right".into());
67         let movement_direction = match direction {
68             val if val < -f32::EPSILON => MovementDirection::Left,
69             val if (-f32::EPSILON..f32::EPSILON).contains(&val) => MovementDirection::Neutral,
70             val if val >= f32::EPSILON => MovementDirection::Right,
71             _ => unreachable!(),
72         };
73
74         let mut animated_sprite = self
75             .base()
76             .get_node_as::<AnimatedSprite2D>("AnimatedSprite2D");
77
78         // Flip the sprite to match movement direction
79         match movement_direction {
80             MovementDirection::Left => animated_sprite.set_flip_h(true),
81             MovementDirection::Neutral => {}
82             MovementDirection::Right => animated_sprite.set_flip_h(false),
83         }
84
85         // Play animation
86         let animation = if self.base().is_on_floor() {
87             match movement_direction {
88                 MovementDirection::Neutral => "idle",
89                 MovementDirection::Left | MovementDirection::Right => "run",
90             }
91         } else {
92             "jump"
93         };
94         animated_sprite.play_ex().name(animation.into()).done();
95
96         // Apply movement
97         #[allow(clippy::cast_possible_truncation)]
98         let new_velocity_x = match movement_direction {
99             MovementDirection::Neutral => {
100                 move_toward(f64::from(velocity_x), 0.0, self.speed) as f32
101             }
102             MovementDirection::Left | MovementDirection::Right => direction * (self.speed) as f32,
103         };
104
105         self.base_mut().set_velocity(Vector2 {
106             x: new_velocity_x,
107             y: new_velocity_y,
108         });
109
110         self.base_mut().move_and_slide();
111     }
112 }



See the link further down for the full project code.

Again, for reference, here is the previous GDScript code for the Player:


1 extends CharacterBody2D
2
3 const SPEED := 130.0
4 const JUMP_VELOCITY := -300.0
5
6 # Get the gravity from the project settings to be synced with RigidBody nodes.
7 var gravity = ProjectSettings.get_setting("physics/2d/default_gravity")
8
9 @onready var animated_sprite = $AnimatedSprite2D
10
11
12 func _physics_process(delta):
13 	# Add the gravity.
14 	if not is_on_floor():
15 		velocity.y += gravity * delta
16
17 	# Handle jump.
18 	if Input.is_action_just_pressed("jump") and is_on_floor():
19 		velocity.y = JUMP_VELOCITY
20
21 	# Get the input direction: -1, 0 or 1
22 	var direction := Input.get_axis("move_left", "move_right")
23
24 	# Flip the sprite
25 	if direction > 0:
26 		animated_sprite.flip_h = false
27 	elif direction < 0:
28 		animated_sprite.flip_h = true
29
30 	# Play animation
31 	if is_on_floor():
32 		if direction == 0:
33 			animated_sprite.play("idle")
34 		else:
35 			animated_sprite.play("run")
36 	else:
37 		animated_sprite.play("jump")
38
39 	# Apply movement
40 	if direction:
41 		velocity.x = direction * SPEED
42 	else:
43 		velocity.x = move_toward(velocity.x, 0, SPEED)
44
45 	move_and_slide()



🤖 Adding Rust Library in Godot Engine #

Once you have coded and compiled the player (or other GDExtension class) to use it in your game, you just need to change the type of its Godot Scene.

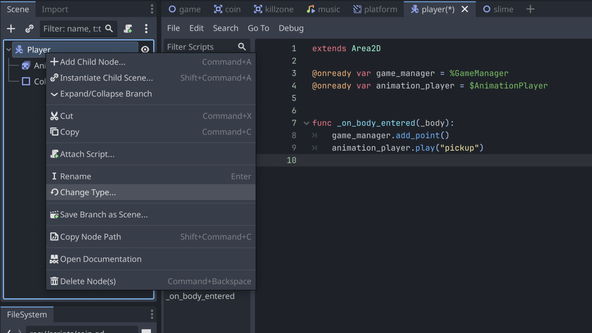

Do this by right-clicking on the scene in Godot Engine (Player scene in this case) and selecting Change Type….

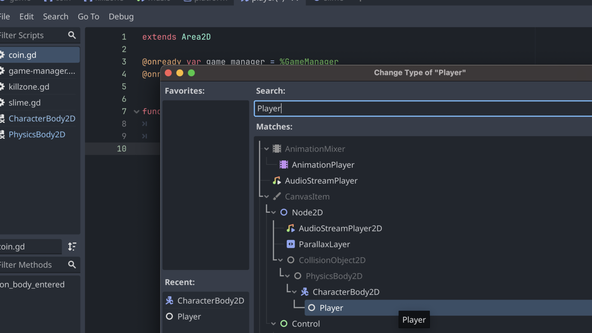

Then, you need to search for the name you gave your class in the Rust code. My Rust struct was also called Player, and I can see it in the view as a child of CharacterBody2D. I select this and I am done!

Godot Engine now links to the dynamic shared library I created in Rust.

🙌🏽 Godot Rust gdext: Wrapping Up #

In this post on Godot Rust gdext, we took a look through some resources for getting started with GDExtension for Godot 4. In particular, we looked at:

• resources for getting started with GDExtension and Godot Rust;
• a tip for speeding up the coding feedback cycles; and
• how to use your GDExtension dynamic library in Godot Engine.

I hope you found this useful. As promised, you can get the full project code on the Rodney Lab GitHub repo  . I would love to hear from you, if you are also new to Godot video game development. Were there other resources you found useful? Also, let me know what kind of game you are working on!
