📚 Creating C++ API Documentation with Sphinx #

Following on from an earlier Doxygen post, in this post, we look at creating C++ Sphinx docs. We noted Doxygen is stable and works well with CMake in that earlier post. Sphinx does bring some flexibility to the table though, as well as some more modern themes.

I tried adding Sphinx docs to a game I am working on. For the most part, I followed a good post I found on generating Sphinx documentation from Doxygen with Breathe and CMake. In this post, I highlight what I did differently, as well as include links to Breathe and Sphinx resources.

🦁 How is Sphinx Different to Doxygen? #

Doxygen default styling can look a little brutalist, with a look generating an early Internet feel. This might be fine, though, for an internal documentation site used internally. Other use cases, however, might call for a fresher feel.

One advantage of Doxygen is that you write documentation in a Markdown-like syntax (in your code source). Markdown is quick to learn and will already be familiar to many content writers. Sphinx uses reStructuredText , so there is a little more to learn for generating some content. We will see, though, that you can generate your Sphinx output from C++ classes documented with Doxygen (Markdown-based) comments, which limits the places you will need to use reStructuredText.

blurry low resolution placeholder image — Creating C++ Sphinx Docs: Example Doxygen Output

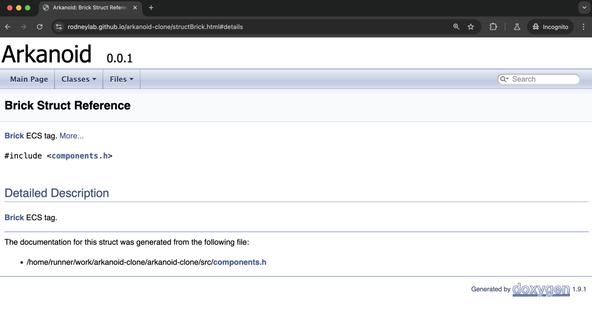

Creating C++ Sphinx Docs: Screen capture shows documentation for a C++ class. The title reads Arkanoid, followed by the version number: 0.0.1. The menu has Main Page, Classes and Files links. Below the page subheading reads Brick Struct Reference and heads a section with a detailed description of the A P I. — Creating C++ Sphinx Docs: Example Doxygen Output

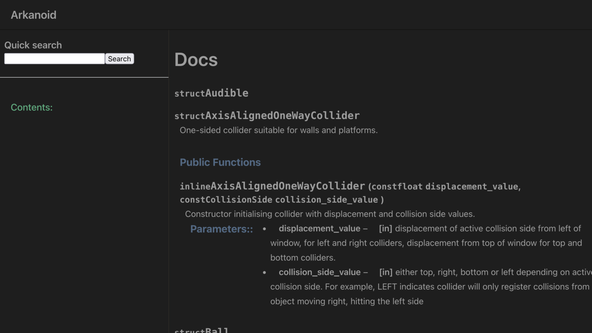

Creating C++ Sphinx Docs: Screen capture shows documentation for C++ classes. The title reads Arkanoid documentation in black. Links use green text and the page background is a dark charcoal colour and the layout includes much negative space. Under a Docs title, classes are listed with their C++ public functions. — Creating C++ Sphinx Docs: Sphinx Press Theme

🧘🏽 What is Breathe? #

Breathe is a Sphinx extension. It lets Sphinx generate your documentation, using the XML output from Doxygen as an input. Sphinx and Breathe are Python-based projects, and they get another mention (further down) when I talk about requirements.txt.

Sphinx Resources #

Clear, Functional C++ Documentation with Sphinx and Breathe blog post. I based my documentation generation on this post, making some minor changes (mentioned further down).
Sphinx Themes Gallery - showcase for some Sphinx Themes.
reStructuredText primer - reStructuredTest is the markup language used by Sphinx.

As an aside, that first link mentions fmtlib docs as an example of what Sphinx docs can look like. It seems the fmtlib project has since moved from Sphinx to MkDocs .

Sphinx Config: `index.rst` & `conf.py` #

Both index.rst and conf.py get generated by the sphinx-quickstart step in the Clear, Functional C++ Documentation blog post that I followed. index.rst is a reStructuredText file, and essentially the markup for the site home page.

`index.rst` #

index.rst

rest

    1 .. Arkanoid documentation master file, created by
2    sphinx-quickstart on Sat Aug 10 10:23:02 2024.
3    You can adapt this file completely to your liking, but it should at least
4    contain the root `toctree` directive.
5
6 Arkanoid documentation
7 ======================
8
9 Arkanoid clone game docs. Project
10 `GitHub repo <https://github.com/rodneylab/arkanoid-clone>`_.
11
12
13 .. toctree::
14    :maxdepth: 2
15    :caption: Contents:
16
17 Docs
18 ====
19
20
21 .. doxygenstruct:: Audible
22    :members:
23
24 .. doxygenstruct:: AxisAlignedOneWayCollider
25    :members:

A key difference with Doxygen is that you declare which structs you want documented, and in which section their documentation is placed. This brings more flexibility, though you need to create an external process to ensure you remember to add documentation for new APIs.

Lines 21 – 22 and 24 – 25 (above) show how to add documentation from Doxygen for the Audible and AxisAlignedOneWayCollider C++ structs to the “Docs” section.

conf.py #

conf.py

python

    1 # Configuration file for the Sphinx documentation builder.
2 #
3 # For the full list of built-in configuration values, see the documentation:
4 # https://www.sphinx-doc.org/en/master/usage/configuration.html
5
6 # -- Project information -----------------------------------------------------
7 # https://www.sphinx-doc.org/en/master/usage/configuration.html#project-information
8
9 project = "Arkanoid"
10 copyright = "2024, Rodney Johnson"
11 author = "Rodney Johnson"
12
13 # -- General configuration ---------------------------------------------------
14 # https://www.sphinx-doc.org/en/master/usage/configuration.html#general-configuration
15
16 extensions = ["breathe"]
17 breathe_default_project = "Arkanoid"
18
19 templates_path = ["_templates"]
20 exclude_patterns = ["_build", "Thumbs.db", ".DS_Store"]
21
22
23 # -- Options for HTML output -------------------------------------------------
24 # https://www.sphinx-doc.org/en/master/usage/configuration.html#options-for-html-output
25
26 html_theme = "press"
27 html_static_path = ["_static"]

I set my chosen theme, press, in line 26. The theme includes a dark mode, and requires the Python package sphinx_press_theme, which I added to the project requirements.txt. I also added breathe, sphinx and related required packages to that file.

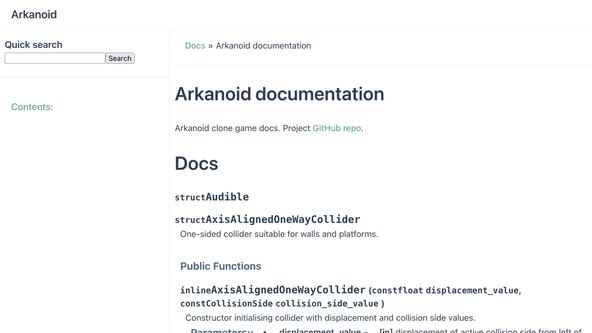

Creating C++ Sphinx Docs: Screen capture shows documentation for C++ classes. The title reads Arkanoid documentation in light grey text. There is are breadcumbs above with links in green text. The page background is white and the layout includes much negative space. Under a Docs title, classes are listed with their C++ public functions. — Creating C++ Sphinx Docs: Sphinx Press Theme Dark Mode

requirements.txt

plaintext

    breathe==4.35.0 \
  --hash=sha256:52c581f42ca4310737f9e435e3851c3d1f15446205a85fbc272f1f97ed74f5be

# TRUNCATED...

sphinx==8.0.2 \
  --hash=sha256:56173572ae6c1b9a38911786e206a110c9749116745873feae4f9ce88e59391d

# TRUNCATED...

sphinx_press_theme==0.9.1 \
  --hash=sha256:eed3fdd8df249b67136b507dfc6a84d1a2c5feca5376960c6d4d28ada4f6cdf7

See the project repo (link further down), for the full list requirements.txt file.

CMake Config #

Following the Clear Function C++ Documentation blog post (mentioned earlier), I added a new section at the bottom of the existing Doxygen CMake file (docs/CMakeLists.txt) to generate the Sphinx documentation:

docs/CMakeLists.txt

cmake

    1 option(BUILD_DOC "Build documentation" ON)
2
3 # Doxgen documentation generation
4 # TRUNCATED...
5
6 # Sphinx documentation generation
7 find_package(Sphinx REQUIRED)
8 set(SPHINX_SOURCE ${CMAKE_CURRENT_BINARY_DIR})
9 set(SPHINX_BUILD ${CMAKE_CURRENT_BINARY_DIR}/sphinx)
10 set(DOXYGEN_OUTPUT_DIR ${CMAKE_CURRENT_BINARY_DIR}/doc_doxygen)
11 add_custom_command(
12     TARGET doc_doxygen
13     POST_BUILD
14     COMMAND
15         ${CMAKE_COMMAND} -E copy ${CMAKE_CURRENT_SOURCE_DIR}/../docs/index.rst
16         ${CMAKE_CURRENT_BINARY_DIR}/index.rst
17     COMMAND
18         ${CMAKE_COMMAND} -E copy ${CMAKE_CURRENT_SOURCE_DIR}/../docs/conf.py
19         ${CMAKE_CURRENT_BINARY_DIR}/conf.py)
20 add_custom_target(
21     Sphinx ALL
22     COMMAND
23         ${SPHINX_EXECUTABLE} -b html
24         -Dbreathe_projects.Arkanoid=${DOXYGEN_OUTPUT_DIR}/xml ${SPHINX_SOURCE}
25         ${SPHINX_BUILD}
26     WORKING_DIRECTORY ${CMAKE_CURRENT_BINARY_DIR}
27     COMMENT "Generating documentation with Sphinx")

Line 10 sets DOXYGEN_OUTPUT_DIR, used by Sphinx as an input.
In lines 14-19, I copy the Sphinx config files from the project input folders to the build folder.
In line 24, I add the path for the Doxygen generated XML output.

I also updated docs/Doxyfile.in to output XML (it just outputs HTML by default).

docs/Doxyfile.in

plaintext

    # ..TRUNCATED
GENERATE_XML           = YES

🎬 Creating C++ Sphinx Docs: GitHub Action #

In the previous Doxygen post, I generated the docs in a GitHub Action and hosted the site on GitHub Pages. The Action publishes documentation to GitHub Pages on each successful merge.

Here is the updated GitHub Action, which uses the freshly added Sphinx output (.github/workflows/documentation.yml).

.github/workflows/documentation.yml

yaml

    1 name: Documentation
2 on:
3   push:
4     tags:
5       - "*"
6     branches: [main, master]
7 permissions:
8   contents: read
9 jobs:
10   build:
11     name: Build and publish documentation
12     permissions:
13       contents: write
14       pages: write
15     runs-on: ubuntu-latest
16     steps:
17       - name: Harden Runner
18         uses: step-security/harden-runner@91182cccc01eb5e619899d80e4e971d6181294a7 # v2.10.1
19         with:
20           egress-policy: audit
21           disable-telemetry: true
22       - uses: actions/checkout@692973e3d937129bcbf40652eb9f2f61becf3332 # v4.1.7
23       - name: Install Linux Dependencies
24         if: runner.os == 'Linux'
25         run: sudo apt-get update && sudo apt-get install libxrandr-dev libxcursor-dev libudev-dev libopenal-dev libflac-dev libvorbis-dev libgl1-mesa-dev libegl1-mesa-dev freeglut3-dev libxinerama-dev libxi-dev
26       - name: Setup Cpp
27         uses: aminya/setup-cpp@bfbfe9ca0b2c69a076f6513393d61fc478fb54f8 # v0.41.0
28         with:
29           clangtidy: true
30       - uses: actions/setup-python@f677139bbe7f9c59b41e40162b753c062f5d49a3 # v5.2.0
31       - name: Install Docs
32         run: |
33           sudo apt-get install doxygen
34           pip install -r requirements.txt  --require-hashes
35       - name: configure
36         run: |
37           cmake -H. -Bbuild -G "Unix Makefiles" -DCMAKE_BUILD_TYPE="Debug"
38       - name: building
39         run: |
40           cmake --build build --config Debug --target doc_doxygen Sphinx -j4
41       - name: Deploy to GitHub Pages
42         uses: Cecilapp/GitHub-Pages-deploy@526a34f794dfdf7edd6a4ac94321b1e7945910c0 # v3
43         env:
44           GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}
45         with:
46           build_dir: ./build/docs/sphinx

I just change the last line here to point GitHub Pages to the Sphinx output. I did not need to update anything in the GitHub Pages config console. The Action will install the new Python dependencies from the updated requirements.txt file already included in line 34.
