CMake Coverage Example: with GitHub Actions and codecov.io ☑️️ # CMake Coverage Example: with GitHub Actions and codecov.io ☑️️ #

CMake Coverage Example: with GitHub Actions and codecov.io ☑️️ #

Updated 6 months ago

6 minute read

Gunning Fog Index: 5.8

Content by Rodney

🧑🏽‍💻 CMake Coverage Example #

In this post, we see a CMake coverage example using GitHub Actions. We build the project and run unit tests on each git push, before uploading the latest code coverage results to codecov.io. This is all working on a CMake C++ project. Using gcov, genhtml and lcov locally, it is possible to generate an HTML coverage report, with graphs. However, here we automate the process, running tests remotely. This has added advantages. For example, you might configure your repo to reject pull requests that cause the test coverage to drop below a target percentage.

🧱 What we are Building #

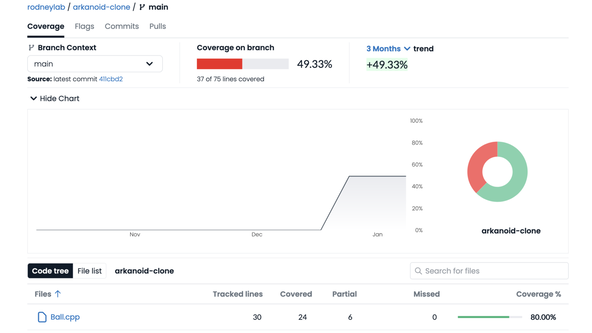

blurry low resolution placeholder image — CMake Coverage Example: Starter Template Screen Capture

CMake Coverage Example: Screenshot shows codecov.io console. In the main view, a graph shows around 50% coverage over January. To the right, a donut represents this information with red and green segments. — CMake Coverage Example: Starter Template Screen Capture

We will use an arkanoid-clone project that I set up for testing. This is a clone of the classic arcade game built using CMake and SFML. The repo itself is based on a YouTube tutorial, and you can find a link to the original tutorial in the arkanoid-clone repo README . You might also want to reference the repo for any extra useful details missing here — do let me know, though, if there is anything, extra, I could add here to make the article clearer.

Let’s start by adding Catch2 tests to the repo. We assume you have a CMake repo ready to add tests, too. If you don’t, there is a fantastic JetBrains tutorial on adding Catch2 unit tests in CMake , which you can set up quickly as a toy project.

☑️ Setting up CMake Unit Tests #

I will add Catch2 tests in a new Catch_tests directory, and need to include the new directory at the bottom of the main CMakeLists.txt file:

CMakeLists.txt

cmake

    # include test folder towards the bottom of CMakeLists.txt
option(RUN_UNIT_TESTS "Run Catch2 unit tests" ON)
if(RUN_UNIT_TESTS)
    enable_testing()
    add_subdirectory(Catch_tests)
endif()

Then, I create Catch_tests/CMakeLists.txt:

Catch_tests/CMakeLists.txt

cmake

    include(FetchContent)
FetchContent_Declare(
    Catch2
    GIT_REPOSITORY https://github.com/catchorg/Catch2.git
    GIT_TAG v3.7.0)
FetchContent_MakeAvailable(Catch2)

add_executable(Catch_tests_run BallTests.cpp)

target_link_libraries(
    Catch_tests_run
    PRIVATE Ball_lib
            Brick_lib
            Paddle_lib
            arkanoid_compiler_flags)
target_link_libraries(Catch_tests_run PRIVATE Catch2::Catch2WithMain)
target_include_directories(Catch_tests_run PUBLIC "${PROJECT_SOURCE_DIR}/src")

include(Catch)
catch_discover_tests(Catch_tests_run)

This fetches the Catch2 dependency from GitHub, adds a test executable and finally, sets up Catch2 to discover the tests.

As an example test, you might have something like src/Catch_tests/BallTests.cpp:

Catch2_tests/Ball.cpp

cpp

    #include "Ball.h"

#include <SFML/Graphics.hpp>
#include <catch2/catch_test_macros.hpp>

TEST_CASE("BallCorrectlyInitialised", "[BallTests]")
{
    const Ball ball{256, 512};
    const sf::Color ball_colour{ball.shape.getFillColor()};
    CHECK(ball_colour == sf::Color::Red);
}

See the tutorial, mentioned above, for more on creating Catch2 tests and setting them up in CMake.

⛺️ Adding Coverage Tests #

To start, download the CMake lcov Coverage module and add it to a new cmake folder in the root directory of your project:

cmake/coverage.cmake — click to expand code.

cmake/coverage.cmake

cmake

    1 function(add_coverage_target exclude)
2
3     find_program(GCOV gcov)
4     if (NOT GCOV)
5         message(WARNING "program gcov not found")
6     endif()
7
8     find_program(LCOV lcov)
9     if (NOT LCOV)
10         message(WARNING "program lcov not found")
11     endif()
12
13     find_program(GENHTML genhtml)
14     if (NOT GENHTML)
15         message(WARNING "program genhtml not found")
16     endif()
17
18     if (LCOV AND GCOV AND GENHTML)
19         set(covname cov.info)
20         add_compile_options(-fprofile-arcs -ftest-coverage)
21         add_link_options(--coverage)
22         add_custom_target(cov DEPENDS ${covname})
23         add_custom_command(
24             OUTPUT  ${covname}
25             COMMAND ${LCOV} -c -o ${covname} -d . -b . --gcov-tool ${GCOV}
26             COMMAND ${LCOV} -r ${covname} -o ${covname} ${exclude}
27             COMMAND ${LCOV} -l ${covname}
28             COMMAND ${GENHTML} ${covname} -output coverage
29             COMMAND ${LCOV} -l ${covname} 2>/dev/null | grep Total | sed 's/|//g' | sed 's/Total://g' | awk '{print $1}' | sed s/%//g > coverage/total
30         )
31         set_directory_properties(PROPERTIES
32             ADDITIONAL_CLEAN_FILES ${covname}
33         )
34     else()
35         message(WARNING "unable to add target `cov`: missing coverage tools")
36     endif()
37
38 endfunction()

Then, update the main CMakeLists.txt to find and use this, adding these lines towards the top of the file:

CMakeLists.txt

cmake

    set(CMAKE_MODULE_PATH "${CMAKE_MODULE_PATH};${PROJECT_SOURCE_DIR}/cmake")
include(coverage)
add_coverage_target("*/Catch_tests/*")

The argument of the add_coverage_target function is passed to lcov and gcov as an exclude path.

That is all you need to run the coverage tests. We will convert the data to XML for codecov.io later, using gcovr.

CMake Coverage Example: GitHub Test & Coverage Action #

Next we need a GitHub action. This runs on every pull request submission. In our case, we use it to build the project, run tests and then generate a coverage report in XML format ready for codecov.io. Create a GitHub workflow flow in .github/workflows/ubuntu.yml to do this:

.github/workflows/ubuntu.yml

yaml

    1 name: Ubuntu CI Test
2 on:
3   push:
4     branches: [main, master, dev]
5   pull_request:
6     branches: [main, master, dev]
7 permissions:
8   contents: read
9 jobs:
10   build:
11     runs-on: ubuntu-latest
12     steps:
13       - uses: actions/checkout@692973e3d937129bcbf40652eb9f2f61becf3332 # v4.1.7
14       - name: install
15         run: sudo apt-get update && sudo apt-get install lcov #libxrandr-dev libxcursor-dev libudev-dev libopenal-dev libflac-dev libvorbis-dev libgl1-mesa-dev libegl1-mesa-dev freeglut3-dev # OpenGL dependencies only needed for SFML
16       - name: configure
17         run: |
18           cmake -H. -Bbuild -G "Unix Makefiles" -DCMAKE_BUILD_TYPE=Debug -DENABLE_COVERAGE=On
19       - name: building
20         run: |
21           cmake --build build --config Debug --target Catch_tests_run
22       - name: run unit tests
23         working-directory: ./build/bin
24         run: |
25           ./Catch_tests_run
26       - name: generate coverage
27         working-directory: ./build
28         run: |
29           make cov
30       - name: Install gcovr
31         run: |
32           pip install -r requirements.txt  --require-hashes
33       - name: Generate JSON coverage report
34         working-directory: ./build
35         run: |
36           gcovr -r .. . --branches --cobertura > coverage.xml
37       - name: Upload coverage reports to Codecov
38         uses: codecov/codecov-action@e28ff129e5465c2c0dcc6f003fc735cb6ae0c673 # v4.5.0
39
40         env:
41           CODECOV_TOKEN: ${{ secrets.CODECOV_TOKEN }}

I use git commit hashes instead of repo tags or version numbers for added security (in line 13, for example). In line 15 you can install gcovr and lcov as well as any extra dependencies needed to build your project.

Lines 16 to 21 will configure, then build the project in the remote environment, after a pull request. Then, the code in lines 22 to 25 will run the Catch2 unit tests. If we broke something in the pull request, and the unit tests fail, the whole pull request is rejected: exactly what we are looking for.

In lines 26 – 29, we generate the coverage report in a text format. I had most success with codecov.io working in the XML format. We can convert the report, running:

    gcovr -r .. . --branches --cobertura > coverage.xml

Which is exactly what we do in lines 33 – 36, because our working directory will be build/ we adjust the path passed to gcovr. You can find more details on gcovr commands in the docs .

The final lines are where we upload the XML coverage report to codecov.io. You will need to obtain a codecov token and add this to your GitHub repo. To get a token, go to https://app.codecov.io/gh/YOUR-GITHUB-ACCOUNT, log in with GitHub and select the repo you want to add coverage for. Then, follow instructions on adding a repository secret. That will cover step one, displayed, and we have tackled step 2 above!

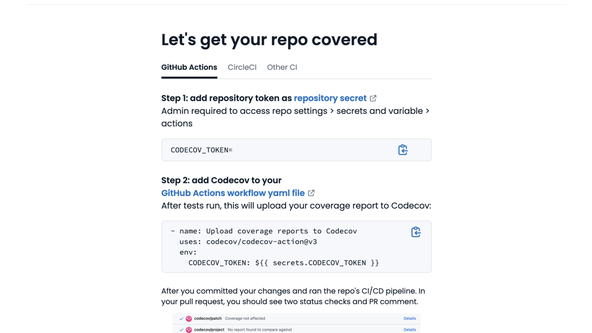

blurry low resolution placeholder image — CMake Coverage Example: Codecov Setup

CMake Coverage Example: Screenshot shows codecov.io console. The title reads, Let's get your repo covered. Below, there are two steps outlines, adding a repository secret and adding codecov to your Git Hub workflow. — CMake Coverage Example: Codecov Setup

Python `requirements.txt` #

Finally, add a requirements.txt file in the project root directory, which will be used in line 32, above, to install gcovr (and the lxml dependency):

requirements.txt

plaintext

    colorlog==6.8.2 \
  --hash=sha256:4dcbb62368e2800cb3c5abd348da7e53f6c362dda502ec27c560b2e58a66bd33
gcovr==7.2 \
  --hash=sha256:e3e95cb56ca88dbbe741cb5d69aa2be494eb2fc2a09ee4f651644a670ee5aeb3 \
  --hash=sha256:fd5cc432c9df863983c530dbd5077937c730b6589117916c188577681469b395
jinja2==3.1.4 \
  --hash=sha256:4a3aee7acbbe7303aede8e9648d13b8bf88a429282aa6122a993f0ac800cb369 \
  --hash=sha256:bc5dd2abb727a5319567b7a813e6a2e7318c39f4f487cfe6c89c6f9c7d25197d
lxml==5.3.0 \
  --hash=sha256:01220dca0d066d1349bd6a1726856a78f7929f3878f7e2ee83c296c69495309e \
  # ...TRUNCATED
  --hash=sha256:fb66442c2546446944437df74379e9cf9e9db353e61301d1a0e26482f43f0dd8
Pygments==2.18.0 \
  --hash=sha256:786ff802f32e91311bff3889f6e9a86e81505fe99f2735bb6d60ae0c5004f199 \
  --hash=sha256:b8e6aca0523f3ab76fee51799c488e38782ac06eafcf95e7ba832985c8e7b13a

💯 CMake Coverage Example: Testing your Work #

Next time you merge a pull request, after a short delay, you will see a coverage report on the codecov.io console, for your project.

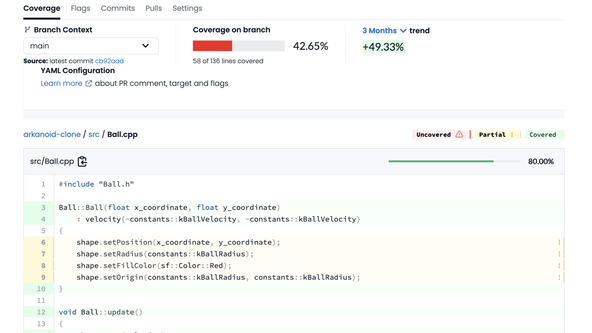

blurry low resolution placeholder image — CMake Coverage Example: Codecov Console File View

CMake Coverage Example: Screenshot shows codecov.io console. In the main view the source code lines are highlighted green, if they were covered by the tests, and red and yellow are used for uncovered and partially covered lines. At the top, a summary shows the 3-Month average of 49% coverage, for the file. — CMake Coverage Example: Codecov Console File View

As well as that, new pull requests will include a codecov.io summary within the Pull Request page on GitHub.

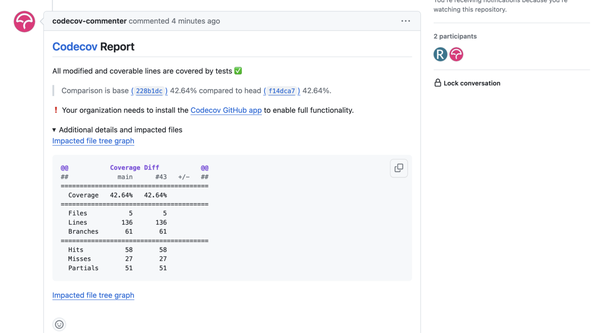

blurry low resolution placeholder image — CMake Coverage Example: GitHub Console Codecov Pull Request Panel

CMake Coverage Example: Screenshot shows a panel on the Git Hub pull request screen.The title reads Codecov Report. A sort explanation is followed by a plain text table, summarizing the coverage results. — CMake Coverage Example: GitHub Console Codecov Pull Request Panel

🙌🏽 CMake Coverage Example: Wrapping Up #

In this CMake coverage example post, we saw a complete example of adding coverage tests to a CMake repo. We used GitHub actions to run a test coverage report, and push it to codecov.io. More specifically, we saw:

how you can use run Catch2 unit test in GitHub actions;
the codecov.io setup process for working in GitHub; and
how to run code coverage test in CI and push the result to codecov.io.

I hope you found this useful. If you need additional pointers, take a look at the arkanoid-clone repo mentioned at the start of the post , which fully implements the coverage approach discussed here. Do let me know, though, if anything here is not clear, or would benefit for further clarification.
