Astro Font Fallbacks with Capsize: reduce CLS 📏 # Astro Font Fallbacks with Capsize: reduce CLS 📏 #

😕 What is Capsize? #

Capsize is a typography tool for text layouts  . Creating precise text layouts can be frustrating, just from the way font sizing is defined. Capsize helps here, making your text height and the spacing above and below more predictable. The font metric data it uses here are also handy for working out the modern CSS adjustments we can make to a fallback font, so its layout approximates the web font’s.

An alternative to Capsize for reducing font swap layout shift is Fontaine  . It has a Vite plugin, and is able automatically to update font face CSS (like we will do, using Capsize metrics). We do something a little more manual here with Capsize, just to help get a grounding in the issue and solution approach.

🧱 What are we Building? #

We won’t build a site from start-to-finish. Instead, we will jump into snippets for a basic example with vanilla CSS and self-hosted fonts. There is a link to the complete code further down the page. You will be able to use that code to play around a little with font swaps and see the impact of our approach.

If you are new to working with self-hosted fonts in Astro, see the Astro Self-Hosted Fonts workflow video to get up to speed. If you want more background on font swapping and fallbacks, before continuing, see the thorough article by Katie Hempenius on Chrome Developers  .

🌍 Astro Font Fallbacks: Global Styles #

Our first code snippet is the global style sheet. The most important feature here is setting and using a custom CSS property for the font family:


:root {
	/* ...TRUNCATED */
	--font-family: 'Open Sans', sans-serif;
}



We will override that property in the font fallback CSS which we generate.

💄 font‑face CSS #

These are the font-face directives needed for our Open Sans font. Later, these CSS files will be imported into the Astro markup file.


/* open-sans-regular - latin */
@font-face {
	font-display: swap; /* Check https://developer.mozilla.org/en-US/docs/Web/CSS/@font-face/font-display for other options. */
	font-family: 'Open Sans';
	font-style: normal;
	font-weight: 400;
	src: url('/fonts/open-sans-v35-latin-regular.woff2') format('woff2'),
		/* Chrome 36+, Opera 23+, Firefox 39+ */ url('/fonts/open-sans-v35-latin-regular.woff')
			format('woff'); /* Chrome 5+, Firefox 3.6+, IE 9+, Safari 5.1+ */
}

/* open-sans-700 - latin */
@font-face {
	font-display: swap; /* Check https://developer.mozilla.org/en-US/docs/Web/CSS/@font-face/font-display for other options. */
	font-family: 'Open Sans';
	font-style: normal;
	font-weight: 700;
	src: url('/fonts/open-sans-v35-latin-700.woff2') format('woff2'),
		/* Chrome 36+, Opera 23+, Firefox 39+ */ url('/fonts/open-sans-v35-latin-700.woff')
			format('woff'); /* Chrome 5+, Firefox 3.6+, IE 9+, Safari 5.1+ */
}



You can download woff files (and matching font-face directives) for most Google fonts with the google-webfonts-helper app  . Note, font-face includes font-display: swap, which is important here.

📜 Capsize Script #

Next, I added a TypeScript stand-alone script: capsize-font-fallbacks.ts in the project root directory. This uses node APIs to output an extra CSS stylesheet; convenient when working in vanilla CSS. You could, alternatively, use similar code as a utility function to export styles for use on a DOM element: more useful when working with a CSS-in-JS framework or something like vanilla-extract.


1 import { createFontStack } from '@capsizecss/core';
2 import arial from '@capsizecss/metrics/arial';
3 import openSans from '@capsizecss/metrics/openSans';
4 import roboto from '@capsizecss/metrics/roboto';
5 import { writeFileSync } from 'node:fs';
6 import path from 'node:path';
7
8 const __dirname = path.resolve();
9 const outputPath = path.join(__dirname, 'src/styles/font-fallbacks.css');
10
11 const { fontFaces, fontFamily } = createFontStack([openSans, arial, roboto]);
12
13 const css = `/* This file is generated using capsize. Run `pnpm vite-node capsize-font-fallbacks.ts` to refresh. */
14
15 :root {
16   --font-family: ${fontFamily}, sans-serif;
17 }
18
19 ${fontFaces}`;
20
21 writeFileSync(outputPath, css);



Capsize Tooling #

You need to add two Capsize packages to your project:


pnpm add -D @capsizecss/core @capsizecss/metrics



The first package provides createFontStack, which we use to create a fallback font CSS directive and some font-face CSS:


const { fontFaces, fontFamily } = createFontStack(
  [openSans, arial, roboto]);



You can add {fontFaceFormat: 'styleObject'} as a second (options) parameter on createFontStack here, for output better suited to CSS-in-JS styling frameworks.

Choosing Fallback Fonts #

Typically, you will want to use Arial as a fallback font for sans-serif fonts, and Times New Roman for serif. The Katie Hempenius article (mentioned above) notes, although these are quite safe fallbacks for desktop devices, neither is available on Android, so Roboto is a good second fallback.

You can import individual fonts from @capsizecss/metrics, as in lines 2 – 4. Then, combine them into a font stack array. The code adds sans-serif as a third fallback in the output CSS.

vite‑node #

You can run TypeScript node scripts in your Astro project by installing vite-node as a dev dependency. To run vite-node (after install the package as a dependency), use:


pnpm vite-node capsize-font-fallbacks.ts



💅 Generated CSS #

Running the script should create a src/styles/font-fallbacks.css file:


/* This file is generated with capsize. Run `vite-node capsize-font-fallbacks.ts` to refresh. */

:root {
  --font-family: "Open Sans", "Open Sans Fallback: Arial", "Open Sans Fallback: Roboto", sans-serif;
}

@font-face {
  font-family: 'Open Sans Fallback: Arial';
  src: local('Arial');
  ascent-override: 101.1768%;
  descent-override: 27.7323%;
  size-adjust: 105.6416%
}

@font-face {
  font-family: 'Open Sans Fallback: Roboto';
  src: local('Roboto');
  ascent-override: 101.2887%;
  descent-override: 27.763%;
  size-adjust: 105.5249%
}



For the first time, you get to see these mysterious CSS font adjustments (ascent-override, descent-override and size-adjust)!

🏡 Homepage #

The final missing part is the client code for the home page, which will include all the stylesheets we mentioned. An alternative is to place those imports in a layout file, accessible to all site pages.


---
import '~styles/fonts.css';
import '~styles/global.css';

import '~styles/font-fallbacks.css';
---

<html lang="en-GB">
	<head>
		< !-- TRUNCATED... -->
	</head>

	<body>
		<main>
			<h1>🌟 Twinkle, Twinkle, Little Star</h1>
			<p>
				Twinkle, twinkle, little star,<br />
				How I wonder what you are! <br />
				Up above the world so high, <br />
				Like a diamond in the sky.
			</p>
			< !-- TRUNCATED... -->
		</main>
	</body>
</html>

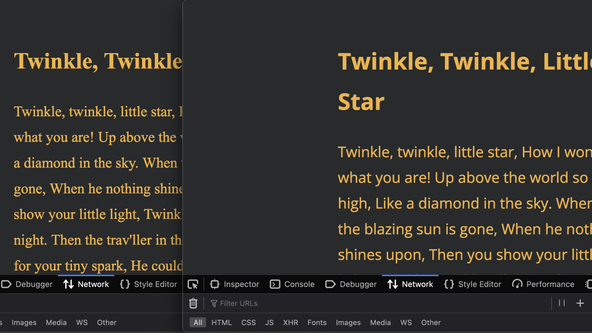

💯 Astro Font Fallbacks: Frontend #

When you have everything working, try commenting out the fallback CSS import line in your Astro page file to see the difference. You will probably need to throttle the network speed to see the load in detail.

I used Times New Roman as a fallback for a sans-serif font here, just to exaggerate the layout shift. Generally, you will use opt for Arial as a safe sans-serif fallback.

🙌🏽 Astro Font Fallbacks: Wrapping Up #

In this post, we saw a way to implement Astro font fallbacks. In particular, we saw:

• why using a font-display: swap improves user experience;
• why you might use Capsize or Fontaine to reduce CLS; and
• how you can use Capsize to generate fallback CSS.

You can see the full code for this project in the Rodney Lab GitHub repo  . I do hope you have found this post useful! Let me know if you decide to use Capsize in a production project, or if you preferred Fontaine. Also, let me know about any possible improvements to the content above.

🏁 Astro Font Fallbacks: Summary #

How can you reduce font swap layout shift in Astro? #

Often, setting the CSS font-display directive to `swap` can improve user experience by making text legible before the page web fonts are all fully loaded. It can add a layout shift as the fallback font gets replaced by the web font, though. Fontaine is a package with a Vite plugin for automatically reducing the shift. It does this by adjusting ascent-override, descent-override and size-adjust modern CSS properties for the fallback fonts. Doing so helps make the fallback font layout more closely resemble the final web font’s layout, reducing layout shift. An alternative to Fontaine is Capsize, which will work with CSS-in-JS tooling, vanilla-extract, or even something more manual. We saw you can try Capsize to help understand the issue and a solution.

How does `font-display: swap` improve user experience? #

Web fonts can take more than a moment to download, especially on a slow connection. You might see Lighthouse suggest setting the `font-display: swap` directive with a fallback. The idea here, is to pick a fallback font which will already be available on the user’s device, such as Arial, Times New Roman or Roboto. Then, setting `swap` instructs the device to display content using that fallback (instead of a blank patch) while waiting for the web font to download. When the web font finally downloads completely, the device swaps the fallback font for the downloaded web font. This improves user experience, though you will likely have to tweak your implementation to avoid layout shift on font swap.

How does `font-display: swap` introduce layout shift? #

`font-display: swap` instructs the browser initially to show text in the fallback font, and to swap to the page web font once it is fully downloaded. No two fonts are identical, and the swap will typically result in some layout shift. Modern CSS steps in to help here! Adjusting the metrics of the fallback font, we can make its layout closely resemble the ultimate layout. The CSS `ascent-override`, `descent-override` and `size-adjust` properties are helpful here. However, there is no need to work out the right values to use manually. We have seen that tooling like Fontaine and Capsize can have your back here!
