Astro Comment Form: with Turnstile & Prerender 🚀 # Astro Comment Form: with Turnstile & Prerender 🚀 #

🧱 What are we Building? #

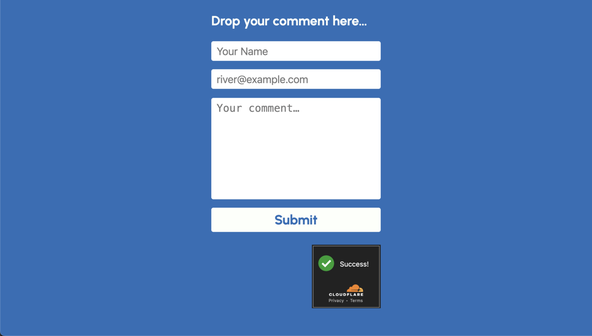

As mentioned above, we will create a comment form component. This will be fairly basic, as the main objective is to see how to add Turnstile and how Astro hybrid rendering work. For your own project, you will want to incorporate server side sanitization, and validation as well as, perhaps, some client-side user interface progressive enhancements.

⛔️ Astro Comment Form: Turnstile Setup #

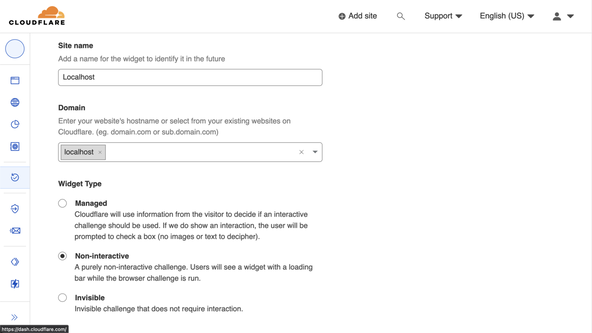

You will need a Cloudflare account to use Turnstile  . At the time of writing, it is in beta and access is free. Log into the Cloudflare console and select Turnstile from the menu on the left. Next, click the Add site button. Turnstile credentials can be limited to work from one or more site domains. We will generate credentials for localhost (as the domain), for testing locally. When you deploy your site, generate a new set of credentials for your public domain.

For now, enter Localhost in the Site name field and localhost in the Domain field. I chose the Non-interactive option for Widget type, but choose whatever best matches your own needs.

⚙️ Getting Started: Astro Comment Form #

If you have an existing site you want to try this code on, create a git branch and follow along. If, instead, you are starting from scratch, spin up a new Astro app:


pnpm create astro astro-prerender-comment-form
cd astro-prerender-comment-form
pnpm astro telemetry disable
pnpm add svelte cloudflare
pnpm add -D wrangler
pnpm dev



Because our form handler will run in SSR mode, we need to pick a cloud provider, so Astro can customize the build for it. We select Cloudflare here. We will use Svelte for the form markup, though you could probably get away with just an Astro component if you really wanted to.

I chose the default options in the CLI prompts. Once the dev server starts, it will let you know the URL it is listening on. By default, this will be http://localhost:4321.

If you take a look at astro.config.mjs you should see something like this:


1 import { defineConfig } from 'astro/config';
2
3 // https://astro.build/config
4 import svelte from '@astrojs/svelte';
5
6 // https://astro.build/config
7 import cloudflare from '@astrojs/cloudflare';
8
9 // https://astro.build/config
10 export default defineConfig({
11 	adapter: cloudflare(),
12 	integrations: [svelte()],
13 	output: 'server',
14 });



Line 13 is important here; it tells Astro to build the whole site as an SSR app. We will override this on our pages, and in fact only the form handler will be managed by the server.

🤫 Environment Variables #

Add your Turnstile credentials to a new .env file in the project root directory. Remember not to commit these to your git repo:


PUBLIC_SITE_URL="http://localhost:4321"
#PUBLIC_SITE_URL="http://localhost:8788"
PUBLIC_TURNSTILE_SITE_KEY="0x0123456789ABCDEFGHIJKL"
TURNSTILE_SECRETKEY="0xABCDEFGHIJKLMNOPQRSTUVWXYZ0123456"



Update the PUBLIC_SITE_URL to wherever your site is running. You can use the commented out value later when running a Cloudflare preview locally.

Next, we write some Astro code 🧑🏽‍🚀.

🏡 Astro Home Page #

Replace the content in src/pages/index.astro:


1 ---
2 import CommentForm from '~/components/CommentForm.svelte';
3 import Layout from '~layouts/Layout.astro';
4
5 export const prerender = true;
6 ---
7
8 <Layout title="Comment">
9 	<main>
10 		<h1>Drop your comment here&hellip;</h1>
11 		<CommentForm client:load />
12 	</main>
13 </Layout>
14
15 <style>
16 	h1 {
17 		margin-bottom: var(--spacing-6);
18 		font-size: var(--font-size-3);
19 	}
20 </style>



Line 5 is where we tell Astro we want to prerender this page, overriding the SSR default set in astro.config.mjs. Astro will generate a static page which can be cached by a global CDN.

I like to use import path aliases (so we have ~/layouts/Layout.astro instead of ../layouts/Layout.astro in line 3). For this to work update tsconfig.json in the project root directory:


1 {
2 	"compilerOptions": {
3 		"baseUrl": ".",
4 		"paths": {
5 			"~*": ["src/*"]
6 		}
7 	},
8 	"extends": "astro/tsconfigs/strict"
9 }



You might notice we referenced some CSS custom properties in the Astro file above. We can define those in a global CSS file and import them to the existing src/layouts/Layout.astro file. That way, the custom properties will be available to us in any pages which use the layout. Update the layout file:


1 ---
2 import '~/styles/fonts.css';
3 import '~/styles/global.css';
4
5 export interface Props {
6 	title: string;
7 	description?: string;
8 }
9
10 const { description = '', title } = Astro.props;
11 ---
12 <!-- TRUNCATED... -->



Create a src/styles/ folder, then add a global.css file with the following content:


:root {
	--spacing-px-2: 2px;
	--spacing-0: 0;
	--spacing-1: 0.25rem;
	--spacing-2: 0.5rem;
	--spacing-4: 1rem;
	--spacing-6: 1.5rem;
	--spacing-8: 2rem;
	--spacing-12: 3rem;
	--max-width-xs: 20rem;
	--max-width-wrapper: 48rem;
	--font-size-root: 16px;
	--font-size-1: 1rem;
	--font-size-2: 1.25rem;
	--font-size-3: 1.563rem;
	--font-size-4: 1.953rem;
	--font-size-5: 2.441rem;
	--font-size-6: 3.052rem;
	--font-weight-normal: 400;
	--font-weight-bold: 700;
	--colour-dark: hsl(132 100% 1%); /* deep fir */
	--colour-brand: hsl(210 67% 43%); /* denim */
	--colour-theme: hsl(116 46% 50%); /* sugar cane */
	--colour-light: hsl(100 100% 99%); /* sandwisp */
	--colour-alt: hsl(12 85% 60%); /* mandarin pearl */
	--colour-light-alpha-90: hsl(100 100% 99% / 90%);
	--font-family-body: Urbanist;
}
html {
	font-family: var(--font-family-body);
}
body {
	display: grid;
	place-items: center;
	background-color: var(--colour-brand);
	padding: var(--spacing-12);
	color: var(--colour-light);
	accent-color: var(--colour-alt);
	caret-color: var(--colour-brand);
}
main {
	min-height: 100vh;
	width: var(--max-width-xs);
	margin: var(--spacing-4) auto var(--spacing-80);
}
h1 {
	font-size: var(--font-size-6);
	font-weight: var(--font-weight-bold);
}
p {
	font-size: var(--font-size-5);
}
form {
	display: flex;
	flex-direction: column;
	width: var(--max-width-full);
}
.screen-reader-text {
	border: 0;
	clip: rect(1px, 1px, 1px, 1px);
	clip-path: inset(50%);
	height: 1px;
	margin: -1px;
	width: 1px;
	overflow: hidden;
	position: absolute !important;
	word-wrap: normal !important;
}



We are still missing the CSS for the fonts. Create fonts.css in the same folder:


/* See: https://gwfh.mranftl.com/fonts/urbanist?subsets=latin
 * to customize or download the fonts
 */
/* urbanist-regular - latin */
@font-face {
	font-display: swap; /* Check https://developer.mozilla.org/en-US/docs/Web/CSS/@font-face/font-display for other options. */
	font-family: 'Urbanist';
	font-style: normal;
	font-weight: 400;
	src: url('/fonts/urbanist-v10-latin-regular.woff2') format('woff2'),
		/* Chrome 36+, Opera 23+, Firefox 39+ */ url('/fonts/urbanist-v10-latin-regular.woff')
			format('woff'); /* Chrome 5+, Firefox 3.6+, IE 9+, Safari 5.1+ */
}
/* urbanist-700 - latin */
@font-face {
	font-display: swap; /* Check https://developer.mozilla.org/en-US/docs/Web/CSS/@font-face/font-display for other options. */
	font-family: 'Urbanist';
	font-style: normal;
	font-weight: 700;
	src: url('/fonts/urbanist-v10-latin-700.woff2') format('woff2'),
		/* Chrome 36+, Opera 23+, Firefox 39+ */ url('/fonts/urbanist-v10-latin-700.woff')
			format('woff'); /* Chrome 5+, Firefox 3.6+, IE 9+, Safari 5.1+ */
}



For this to work, we will serve the .woff and .woff2 files from our project. You can download them  and save the four files (.woff and .woff2 for 400 and 700 weight), to a new public/fonts directory in the project.

We now have the basics out of the way. Hope that wasn’t too quick! Drop a comment below if something needs more explanation. Next we will add the Svelte form component. Then, finally, we can add the SSR form handler.

❤️ Svelte Comment Form #

We will add a script tag to the page html head section for Turnstile. Svelte makes it quite easy to do this from within the component. That helps us encapsulate all the client-site Turnstile code in a single file. Create CommentForm.svelte in the src/components directory with the following content:


1 <script lang="ts">
2 	const siteUrl = import.meta.env.PUBLIC_SITE_URL;
3 	const turnstileSiteKey = import.meta.env.PUBLIC_TURNSTILE_SITE_KEY;
4 </script>
5
6 <svelte:head>
7 	<script src="https://challenges.cloudflare.com/turnstile/v0/api.js" async defer></script>
8 </svelte:head>
9
10 <form action={`${siteUrl}/api/message`} method="post">
11 	<label for="name" class="screen-reader-text">Name</label>
12 	<input id="name" name="name" type="text" required placeholder="Your Name" title="Name" />
13 	<label for="email" class="screen-reader-text">Email</label>
14 	<input
15 		id="email"
16 		name="email"
17 		type="text"
18 		required
19 		placeholder="river@example.com"
20 		title="Email"
21 	/>
22 	<label for="email" class="screen-reader-text">Comment</label>
23 	<textarea id="comment" name="comment" required placeholder="Your comment…" rows="5" ></textarea>
24 	<button type="submit">Submit</button>
25 	<div class="cf-turnstile" data-sitekey={turnstileSiteKey} data-size="compact" ></div>
26 </form>



You see the Turnstile code we needed to add is minimal. We add a script tag in the HTML head section (line 7). Then, the little widget which shows up below the submit button (line 25).

We are using the platform here; we use built-in JavaScript APIs to submit the form. You will see the form has ${siteUrl}/api/message as the action. That is the route we will set the form handler to listen on.

Turnstile Verification Process #

When a user visits the page, the widget runs in the background and decides if the user is a bot or not (traditionally a user challenge would have been used here). The script sends data from the client browser to Cloudflare. Cloudflare then responds with a code. We use that code server-side to check if the visitor passed the Captcha (more on that later). The Turnstile JavaScript code we added will automatically add an extra field with that response code. This is how we get the code from client to server.

Form Styling #

Spruce up the form a touch with some extra styles at the bottom of src/components/CommentForm.svelte:


28 <style>
29 	button {
30 		all: unset;
31 		cursor: pointer;
32 		background-color: var(--colour-light);
33 		color: var(--colour-brand);
34 		padding: var(--spacing-2);
35 		margin-bottom: var(--spacing-6);
36 		font-size: var(--font-size-3);
37 		font-weight: var(--font-weight-bold);
38 		text-align: center;
39 	}
40
41 	button:focus {
42 		outline: var(--spacing-px-2) solid var(--colour-alt);
43 	}
44
45 	button:focus,
46 	button:hover {
47 		background-color: var(--colour-light-alpha-90);
48 	}
49
50 	textarea {
51 		resize: none;
52 	}
53
54 	button,
55 	input,
56 	textarea {
57 		border-radius: var(--spacing-1);
58 	}
59
60 	input,
61 	textarea {
62 		text-indent: var(--spacing-2);
63 		line-height: 1.75;
64 		margin-bottom: var(--spacing-4);
65 		border-radius: var(--spacing-1);
66 		border-style: none;
67 		font-size: var(--font-size-2);
68 	}
69
70 	.cf-turnstile {
71 		margin-left: auto;
72 	}
73 </style>



🥹 Thank‑you Page #

Before we jump to the form handler, let’s add a thank-you page. We will show this on successful form completion. Create src/pages/thanks.astro with this content:


1 ---
2 import Layout from '~layouts/Layout.astro';
3
4 export const prerender = true;
5 ---
6
7 <Layout title="Thanks">
8 	<main>
9 		<h1>Thanks for submitting your comment!</h1>
10 		<p>We will be in touch</p>
11 	</main>
12 </Layout>
13
14 <style>
15 	body {
16 		background-color: var(--colour-theme);
17 		color: var(--colour-dark);
18 	}
19 </style>



🍶 Server‑Side Form Handler #

We are on the home straight now. Once we add the form handler, all we will have left to do is test! In Astro, API routes follow the same file-based routing system as HTML pages. The main difference is that the file extensions are different. Create a src/pages/api folder and in there, add message.ts with the following content:


1 import type { APIRoute } from 'astro';
2
3 const siteUrl = import.meta.env.PUBLIC_SITE_URL;
4 const turnstileSecret = import.meta.env.TURNSTILE_SECRETKEY;
5
6 export const POST: APIRoute = async function POST({ redirect, request }) {
7 	try {
8 		const form = await request.formData();
9 		const name = form.get('name');
10 		const email = form.get('email');
11 		const comment = form.get('comment');
12 		const turnstileResponse = form.get('cf-turnstile-response');
13
14 		const ip = request.headers.get('CF-Connecting-IP');
15
16 		if (typeof turnstileResponse === 'string') {
17 			const bodyFormData = new FormData();
18 			bodyFormData.append('secret', turnstileSecret);
19 			bodyFormData.append('response', turnstileResponse);
20 			ip && bodyFormData.append('remoteip', ip);
21 			const response = await fetch('https://challenges.cloudflare.com/turnstile/v0/siteverify', {
22 				method: 'POST',
23 				body: bodyFormData,
24 			});
25 			const { success } = await response.json();
26
27 			console.log({ name, email, comment, success });
28 		}
29
30 		return redirect(`${siteUrl}/thanks`);
31 	} catch (error: unknown) {
32 		console.error(`Error in comment form submission: ${error as string}`);
33 		return redirect(`${siteUrl}/`);
34 	}
35 };



Again, we are using standard JavaScript APIs for form handling. Remember we said Turnstile adds an extra form field for us? We pull this in, in line 12. The final part of the verification process is to send the client response to Cloudflare, along with our secret Turnstile API key. The server replies with a JSON object including a success field. As you might expect, this is false when Turnstile assesses the visitor to be a bot and true otherwise.

In a real world app, when success is true we would want to commit the comment data to our database as well as any other processing needed. We just do a console log here instead. Also, in a production app, we should want to do some sanitization before inserting the data to the database. On top, we would have some validation, so we do not commit junk to the database. If the comments will be displayed publicly, you will also need to filter them, checking for inappropriate user-submitted content.

Returning to our basic example, finally we respond with a redirect pushing the visitor browser to our new Thank-You page (line 30).

💯 Astro Comment Form: Testing #

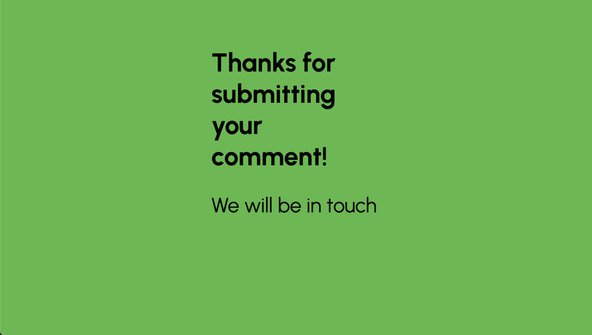

Try submitting the form from your dev server. If all goes well, you should see the Thank-You page.

To build the site locally, we need to run in a Cloudflare wrangler environment. Add an extra script to the project package.json file to handle this:


1 {
2 	"name": "astro-prerender-comment-form",
3 	"type": "module",
4 	"version": "0.0.1",
5 	"private": true,
6 	"scripts": {
7 		"dev": "astro dev",
8 		"start": "astro dev",
9 		"build": "astro telemetry disable && astro build",
10 		"preview": "astro preview",
11 		"preview:cf": "wrangler pages dev ./dist",
12 	},
13 	// TRUNCATED...
14 }



Then run the script from the Terminal:


pnpm preview:cf



This time, the site will be available at http://localhost:8788. If this is your first time running wrangler from your machine, follow the instructions in the Terminal to log in.

Remember to update PUBLIC_SITE_URL in your .env file to match the new URL (otherwise, the form will not submit as expected).

That’s it! You can now try pushing to Cloudflare Pages. Create a set of Turnstile credentials for your actual public domain first.

🙌🏽 Astro Comment Form: Wrapping Up #

In this post, we saw how you can add a server-side form handler to your static Astro site. In particular, we saw:

• how to add Turnstile Captcha in Astro
• how Astro Hybrid rendering and prerendering work
• some points to consider in a full production comment form

You can see the full code for this project in the Rodney Lab GitHub repo  . I do hope you have found this post useful! I am keen to hear what you are doing with Astro and ideas for future projects. Also, let me know about any possible improvements to the content above.

🏁 Astro Comment Form: Summary #

What is Hybrid Rendering? #

Hybrid Rendering is a technique popularized by Astro which lets you choose between two rendering methods on a page-by-page basis. The two options are SSG (Static Site Generation) and SSR (Server-Side Generation). SSG is great for content or information sites. You generate all the pages ahead of time and serve them from a global CDN. This offer speed and better security. Generally, every visitor will see the same content, so SSG is not great for apps where the user logs in and sees a curated feed. SSR is great in this case though. With SSR, the pages are generated just in time, so it is easy to customize them for each visitor. You can use Hybrid rendering even if you want all your pages to be statically generated (or prerendered) but also want to have interactive forms on the site. Interactive forms (a comment form, for example) require a server to process the entered data. Hybrid rendering can help here. You keep all pages static to gain the speed and security benefits, but have a server-based form handler to sanitize, form inputs and add them to your database.

How is Turnstile Captcha different to other captchas? #

Captchas are challenges on websites used to tell bots apart from regular human users. Traditionally, the challenges were interactive, and the user had to click images with traffic lights or some similar task supposed to be difficult for artificial intelligence to perform. Some of these interactive challenges pose accessibility issues and some users find them annoying. Turnstile is non-interactive. It is able to distinguish human from bot visitors in the background. In so doing, it addresses those drawbacks

Can you add form handling to an Astro site without writing serverless functions? #

Astro makes this possible. In the past, to add form processing to a static or JAMStack site, you would add serverless functions. These could run in different environments, and typically their code was segregated from the rest of your project. Hybrid rendering in Astro lets you prerender all your site pages, but include a server handler to process the form inputs. We saw an example, creating a comment form. Now your form handling code becomes a first-class in your project!

🙏🏽 Astro Comment Form: Feedback #

Have you found the post useful? Would you prefer to see posts on another topic instead? Get in touch with ideas for new posts. Also, if you like my writing style, get in touch if I can write some posts for your company site on a consultancy basis. Read on to find ways to get in touch, further below. If you want to support posts similar to this one and can spare a few dollars, euros or pounds, please consider supporting me through Buy me a Coffee.

Rodney

@askRodney

Amazed by 🚀 Astro 2.0's Hybrid Rendering. It lets you add server form handlers to a static site.

Just dropped a new post where we do just that. Also use Cloudflare Turnstile Captcha.

Hope you find it useful!

#JAMStack #learnastro #useThePlatformLukehttps://t.co/9DTAycIRMz pic.twitter.com/SCLOYXgP81

— Rodney (@askRodney) February 1, 2023

Finally, feel free to share the post on your social media accounts for all your followers who will find it useful. As well as leaving a comment below, you can get in touch via @askRodney on Twitter, @rodney@toot.community  on Mastodon and also the #rodney  Element Matrix room. Also, see further ways to get in touch with Rodney Lab. I post regularly on Astro as well as SEO. Also, subscribe to the newsletter to keep up-to-date with our latest projects.
